UCC20520DWR
Texas Instruments
Texas Instruments
UCC20520DWR
$5.39
Available to order
Reference Price (USD)
2,000+
$2.80896
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your designs with Texas Instruments UCC20520DWR Gate Driver Isolators, offering top-tier isolation and signal integrity. These isolators are equipped with high noise rejection, fast switching speeds, and compliance with international safety standards. Suitable for traction inverters, test equipment, and more, they ensure peak performance. Start your order process contact us today!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 2
- Voltage - Isolation: 5700Vrms
- Common Mode Transient Immunity (Min): 100V/ns
- Propagation Delay tpLH / tpHL (Max): 30ns, 30ns
- Pulse Width Distortion (Max): 5ns
- Rise / Fall Time (Typ): 6ns, 7ns
- Current - Output High, Low: 4A, 6A
- Current - Peak Output: -
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 3V ~ 18V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
- Approval Agency: -
Related Products
Toshiba Semiconductor and Storage
TLP701H(F)
Skyworks Solutions Inc.
SI8286CC-IS
Broadcom Limited
HCPL-3180-300E
onsemi

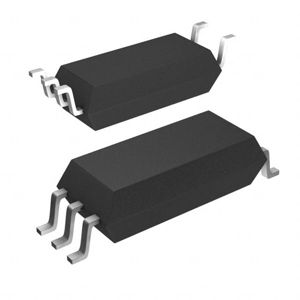

FOD8383R2V
Skyworks Solutions Inc.

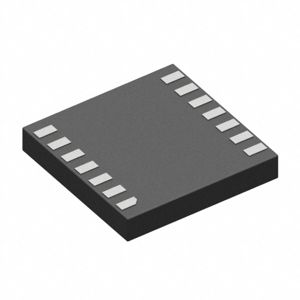

SI8275ABD-IM1R
onsemi

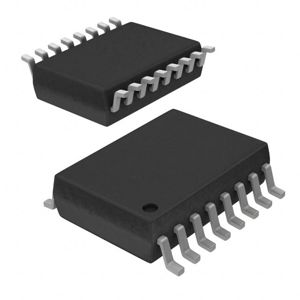

FOD8316R2V
onsemi

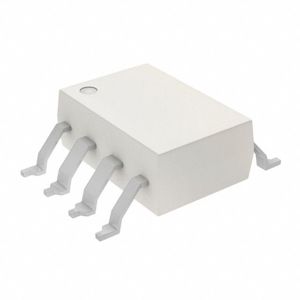

FOD3184TSV
Skyworks Solutions Inc.

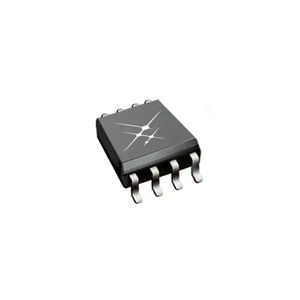

SI8261ABC-C-ISR
