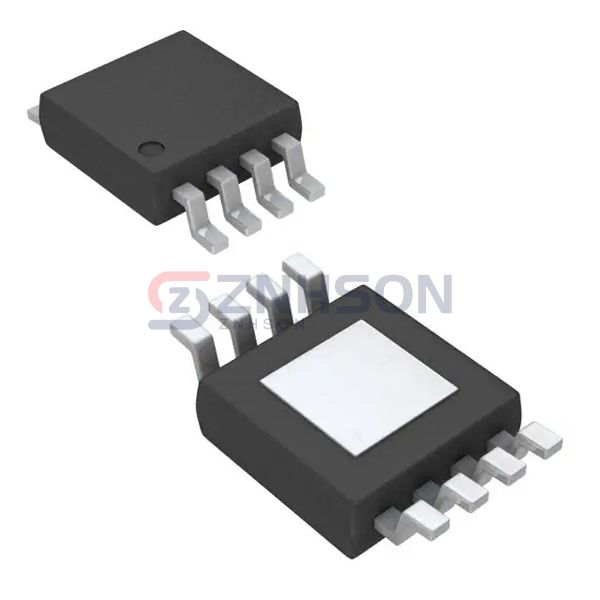

UCC27525DGNR
Texas Instruments
Texas Instruments
IC GATE DRVR LOW-SIDE 8MSOP
$2.22
Available to order
Reference Price (USD)
2,500+
$0.80080
5,000+
$0.77220
12,500+
$0.74360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit performance with Texas Instruments's UCC27525DGNR Gate Drivers, designed for high-efficiency power management. These ICs feature adaptive dead-time control, integrated diagnostics, and wide operating temperatures, making them suitable for automotive, industrial, and consumer applications. Texas Instruments ensures reliability and innovation in every component. Submit your inquiry now to learn more about our offerings.
Specifications
- Product Status: Active
- Driven Configuration: Low-Side
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: IGBT, N-Channel MOSFET
- Voltage - Supply: 4.5V ~ 18V
- Logic Voltage - VIL, VIH: 1V, 2.3V
- Current - Peak Output (Source, Sink): 5A, 5A
- Input Type: Inverting, Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 7ns, 6ns
- Operating Temperature: -40°C ~ 140°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 8-HVSSOP
Related Products
Texas Instruments
LMG1210RVRR
Microchip Technology
TC1411NVUA713
Microchip Technology

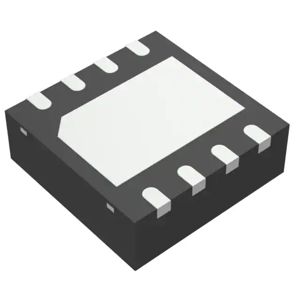

MCP1405T-E/MF
Microchip Technology
TC4428ACOA713
Toshiba Semiconductor and Storage

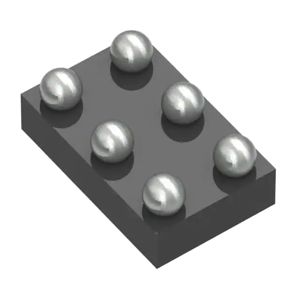

TCK421G,L3F
Microchip Technology
TC4428ACPA
Microchip Technology
MCP14E3-E/P
onsemi

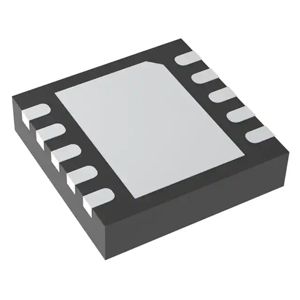

NCP3418BMNR2G
Analog Devices Inc.

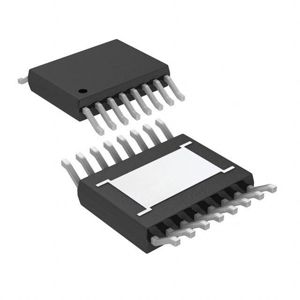

LTC7003EMSE#TRPBF
