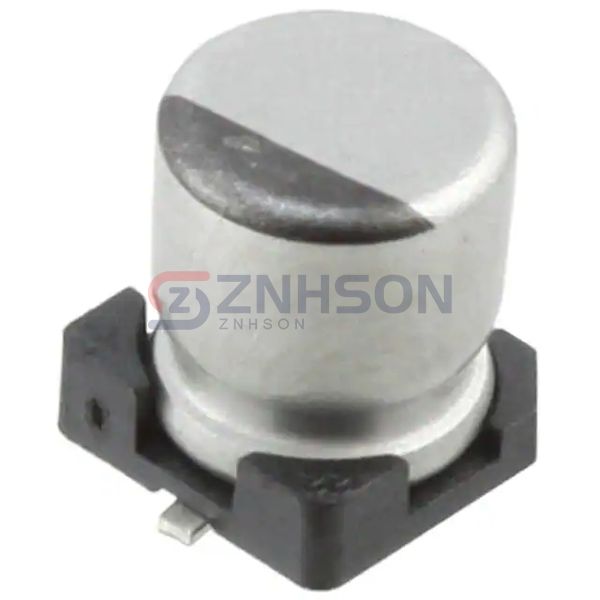

UCL1V220MCL1GS
Nichicon
Nichicon
CAP ALUM 22UF 20% 35V SMD
$0.52
Available to order
Reference Price (USD)
1,000+
$0.12580
2,000+
$0.11840
5,000+
$0.11100
10,000+
$0.10360
25,000+
$0.09990
50,000+
$0.09620
100,000+
$0.09250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your electronics with UCL1V220MCL1GS Aluminum Electrolytic Capacitors by Nichicon. These capacitors combine high capacitance, compact design, and exceptional reliability for applications in audio/video equipment, IoT devices, and power electronics. UCL1V220MCL1GS is your trusted choice for quality and performance. Contact our sales team today to explore our product range and place your order.
Specifications
- Product Status: Active
- Capacitance: 22 µF
- Tolerance: ±20%
- Voltage - Rated: 35 V
- ESR (Equivalent Series Resistance): -
- Lifetime @ Temp.: 2000 Hrs @ 105°C
- Operating Temperature: -55°C ~ 105°C
- Polarization: Polar
- Ratings: -
- Applications: General Purpose
- Ripple Current @ Low Frequency: 120 mA @ 120 Hz
- Ripple Current @ High Frequency: 240 mA @ 100 kHz
- Impedance: 360 mOhms
- Lead Spacing: -
- Size / Dimension: 0.197" Dia (5.00mm)
- Height - Seated (Max): 0.228" (5.80mm)
- Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type: Surface Mount
- Package / Case: Radial, Can - SMD
Related Products
Nichicon
UPW1J181MHD6
Nichicon
UUA1H220MCL1GS
Panasonic Electronic Components
EEE-HD1E102AQ
Cornell Dubilier / Illinois Capacitor
688CKE025M
Vishay Beyschlag/Draloric/BC Components
MAL205253101E3
United Chemi-Con
ELXY350ELL560MFB5D
Rubycon
420LXW100MEFR14.5X40
Panasonic Electronic Components
EEE-FP1E470AV
Vishay Beyschlag/Draloric/BC Components

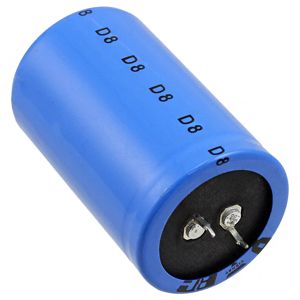

MAL215946271E3
