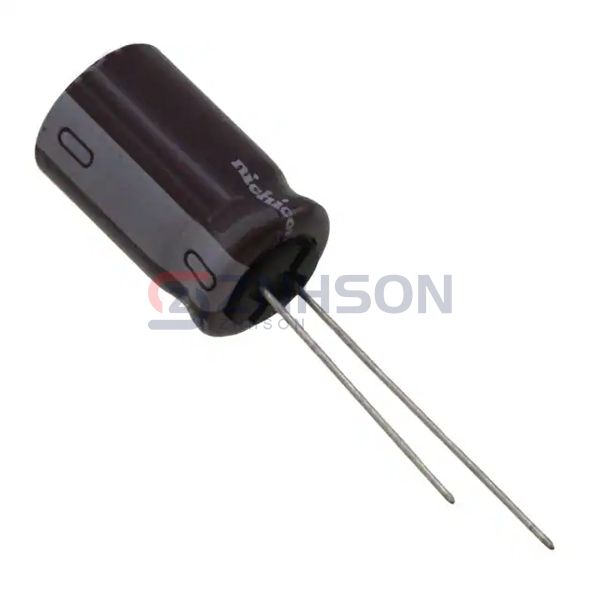

UCS2D680MHD
Nichicon
Nichicon
CAP ALUM 68UF 20% 200V RADIAL
$1.26
Available to order
Reference Price (USD)
1+
$0.99000
10+
$0.75000
100+
$0.53680
500+
$0.41562
1,000+
$0.35790
2,500+
$0.33480
5,000+
$0.31749
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic designs with UCS2D680MHD Aluminum Electrolytic Capacitors, proudly manufactured by Nichicon. With features like high temperature resistance, long service life, and minimal ESR, these capacitors are ideal for inverters, converters, and consumer electronics. UCS2D680MHD guarantees top-tier performance and durability. Contact us today to discuss your needs and secure your supply.
Specifications
- Product Status: Active
- Capacitance: 68 µF
- Tolerance: ±20%
- Voltage - Rated: 200 V
- ESR (Equivalent Series Resistance): -
- Lifetime @ Temp.: 10000 Hrs @ 105°C
- Operating Temperature: -40°C ~ 105°C
- Polarization: Polar
- Ratings: -
- Applications: General Purpose
- Ripple Current @ Low Frequency: 650 mA @ 120 Hz
- Ripple Current @ High Frequency: 1.3 A @ 100 kHz
- Impedance: -
- Lead Spacing: 0.197" (5.00mm)
- Size / Dimension: 0.492" Dia (12.50mm)
- Height - Seated (Max): 0.846" (21.50mm)
- Surface Mount Land Size: -
- Mounting Type: Through Hole
- Package / Case: Radial, Can
Related Products
Rubycon
400WA4.7MEFC10X9
Würth Elektronik
860040880009
KEMET
EDK106M035A9DAA
Nichicon
UKL1C100KDDANATA

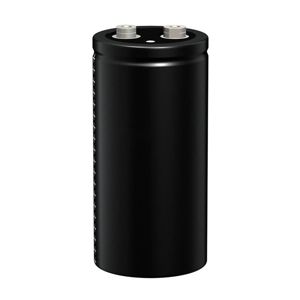

EPCOS - TDK Electronics
