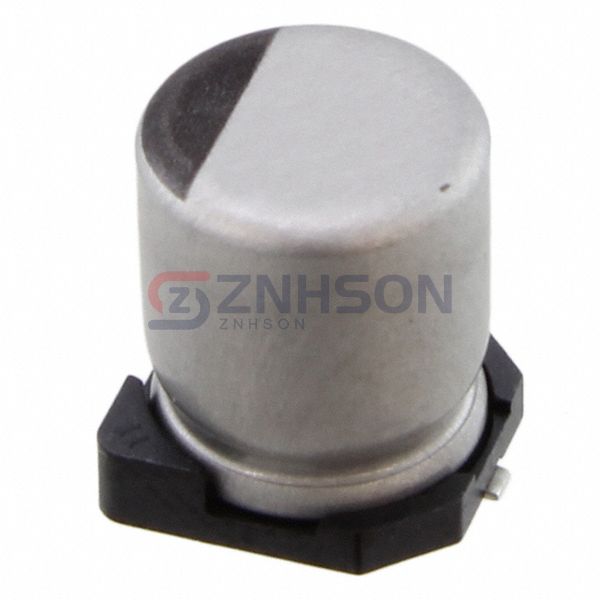

UCZ1H220MCL1GS
Nichicon
Nichicon
CAP ALUM 22UF 20% 50V SMD
$0.79
Available to order
Reference Price (USD)
900+
$0.32606
1,800+
$0.30629
2,700+
$0.28653
4,500+
$0.27171
9,000+
$0.26183
22,500+
$0.25749
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your electronics with UCZ1H220MCL1GS Aluminum Electrolytic Capacitors by Nichicon. These capacitors combine high capacitance, compact design, and exceptional reliability for applications in audio/video equipment, IoT devices, and power electronics. UCZ1H220MCL1GS is your trusted choice for quality and performance. Contact our sales team today to explore our product range and place your order.
Specifications
- Product Status: Not For New Designs
- Capacitance: 22 µF
- Tolerance: ±20%
- Voltage - Rated: 50 V
- ESR (Equivalent Series Resistance): 500mOhm
- Lifetime @ Temp.: 2000 Hrs @ 125°C
- Operating Temperature: -40°C ~ 125°C
- Polarization: Polar
- Ratings: -
- Applications: General Purpose
- Ripple Current @ Low Frequency: 98.5 mA @ 120 Hz
- Ripple Current @ High Frequency: 197 mA @ 100 kHz
- Impedance: -
- Lead Spacing: -
- Size / Dimension: 0.248" Dia (6.30mm)
- Height - Seated (Max): 0.323" (8.20mm)
- Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type: Surface Mount
- Package / Case: Radial, Can - SMD
