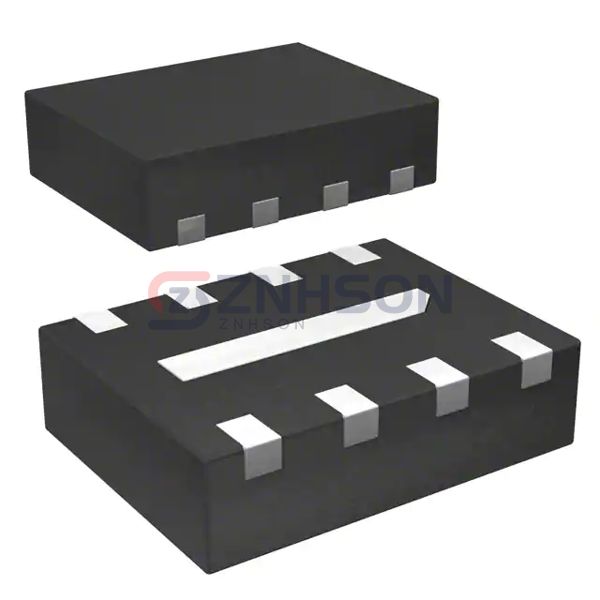

UM4601
Union Semiconductor (HK) Limited
Union Semiconductor (HK) Limited
4-Line LC EMI Filter with TVS
$0.70
Available to order
Reference Price (USD)
1+
$0.70000
500+
$0.693
1000+
$0.686
1500+
$0.679
2000+
$0.672
2500+
$0.665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with Union Semiconductor (HK) Limited's EMI/RFI Filters (LC, RC Networks). These filters are engineered to minimize interference and improve signal integrity. Ideal for medical equipment, aerospace, and consumer electronics, they offer robust performance and durability. Learn more about UM4601 and request a sample now!
Specifications
- Product Status: Active
- Type: Low Pass
- Filter Order: 3rd
- Technology: LC (Pi)
- Number of Channels: 4
- Center / Cutoff Frequency: 150MHz (Cutoff)
- Attenuation Value: -24dB @ 800MHz, -41dB @ 2 ~ 5GHz
- Resistance - Channel (Ohms): 10
- Current: -
- Values: L = 17nH, C = 15pF
- ESD Protection: Yes
- Operating Temperature: -40°C ~ 85°C
- Applications: Data Lines for Mobile Devices
- Voltage - Rated: 5V
- Mounting Type: Surface Mount
- Package / Case: 8-UFDFN
- Size / Dimension: 0.079" L x 0.079" W (2.00mm x 2.00mm)
- Height: 0.031" (0.80mm)
