UM4684H
Union Semiconductor (HK) Limited
Union Semiconductor (HK) Limited
DUAL SPDT ANALOG SWITCH
$0.66
Available to order
Reference Price (USD)
1+
$0.66000
500+
$0.6534
1000+
$0.6468
1500+
$0.6402
2000+
$0.6336
2500+
$0.627
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless integration with Union Semiconductor (HK) Limited UM4684H Interface ICs, designed for Analog Switches, Multiplexers, and Demultiplexers applications. These ICs feature compact designs, low voltage operation, and robust ESD protection, ideal for portable electronics and embedded systems. Trust Union Semiconductor (HK) Limited for components that deliver consistent performance. Contact our team today to request samples or discuss bulk purchasing options.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 800mOhm
- Channel-to-Channel Matching (ΔRon): 500mOhm (Max)
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): 1.8V ~ 5.5V
- Switch Time (Ton, Toff) (Max): 82ns, 73ns
- -3db Bandwidth: 20MHz
- Charge Injection: 21pC
- Channel Capacitance (CS(off), CD(off)): 10pF
- Current - Leakage (IS(off)) (Max): 2nA
- Crosstalk: -69dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount

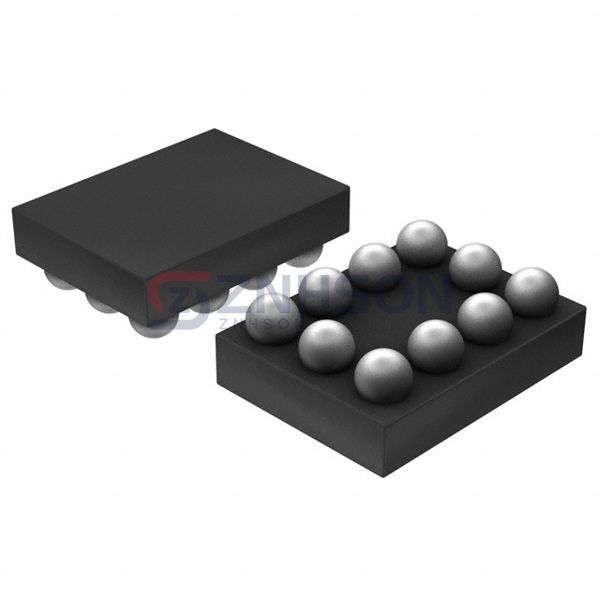

- Package / Case: 10-WFBGA, CSPBGA
- Supplier Device Package: 10-CSP (2.05x1.55)
