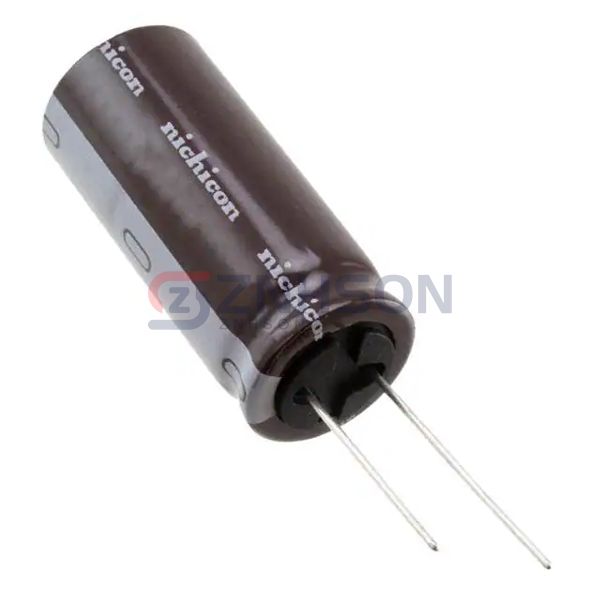

UPS1J222MHD
Nichicon
Nichicon
CAP ALUM 2200UF 20% 63V RADIAL
$3.26
Available to order
Reference Price (USD)
1+
$2.50000
10+
$2.02600
100+
$1.54710
500+
$1.17872
1,000+
$1.03138
2,500+
$1.00191
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior performance with UPS1J222MHD Aluminum Electrolytic Capacitors from Nichicon. These capacitors are designed to meet the highest industry standards, offering low leakage current, high voltage ratings, and excellent thermal stability. Ideal for medical devices, renewable energy systems, and military applications, UPS1J222MHD provides the reliability you need. Don't hesitate contact us now for more details and pricing options.
Specifications
- Product Status: Not For New Designs
- Capacitance: 2200 µF
- Tolerance: ±20%
- Voltage - Rated: 63 V
- ESR (Equivalent Series Resistance): -
- Lifetime @ Temp.: 3000 Hrs @ 105°C
- Operating Temperature: -55°C ~ 105°C
- Polarization: Polar
- Ratings: -
- Applications: General Purpose
- Ripple Current @ Low Frequency: 1.844 A @ 120 Hz
- Ripple Current @ High Frequency: 2.12 A @ 100 kHz
- Impedance: 32 mOhms
- Lead Spacing: 0.295" (7.50mm)
- Size / Dimension: 0.709" Dia (18.00mm)
- Height - Seated (Max): 1.654" (42.00mm)
- Surface Mount Land Size: -
- Mounting Type: Through Hole
- Package / Case: Radial, Can
Related Products
Nichicon
UFW1H682MRD
Vishay Beyschlag/Draloric/BC Components
MAL211844103E3
United Chemi-Con
ELXV6R3ELL221MFB5D
Nichicon
UFW2A221MHD
Vishay Beyschlag/Draloric/BC Components
MAL217055102E3
Chinsan (Elite)
GM2W391MND3535
Vishay Beyschlag/Draloric/BC Components

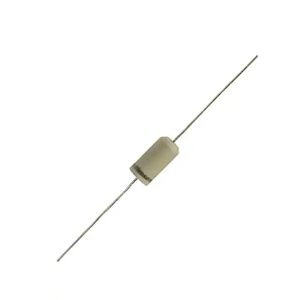

MAL213225479E3
Nichicon

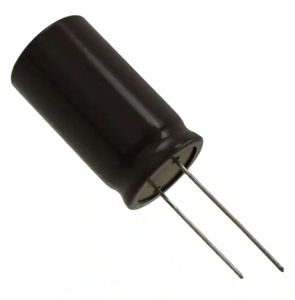

UPT2G181MRD
Panasonic Electronic Components

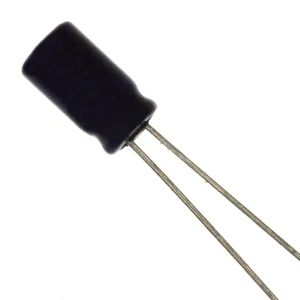

ECE-A1AN101XB
