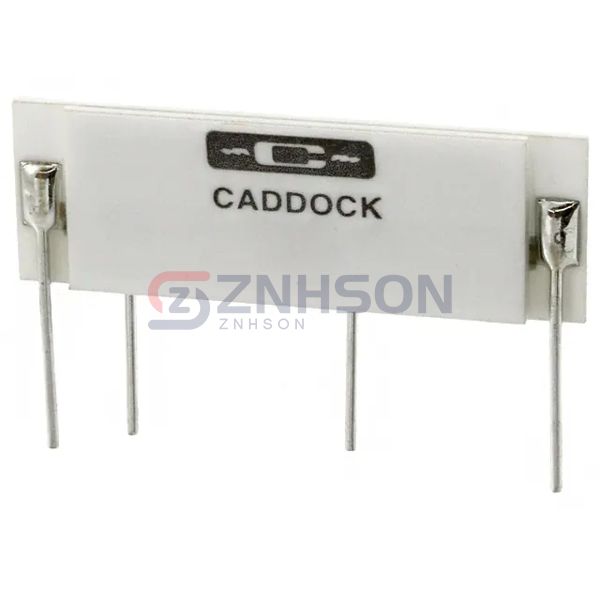

USVD2-B10M-010-02
Caddock Electronics Inc.
Caddock Electronics Inc.
RES NETWORK 2 RES MULT OHM 4SIP
$76.29
Available to order
Reference Price (USD)
1+
$64.03000
10+
$56.71500
25+
$52.14080
50+
$49.39660
100+
$47.56700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Caddock Electronics Inc.'s USVD2-B10M-010-02 resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every USVD2-B10M-010-02 unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Voltage Divider
- Resistance (Ohms): 100k, 9.9M
- Tolerance: ±0.1%
- Number of Resistors: 2
- Resistor Matching Ratio: ±0.01%
- Resistor-Ratio-Drift: ±2ppm/°C
- Number of Pins: 4
- Power Per Element: 100mW
- Temperature Coefficient: ±10ppm/°C
- Operating Temperature: -40°C ~ 85°C
- Applications: Voltage Divider (TCR Matched)
- Mounting Type: Through Hole
- Package / Case: 4-SIP Variation
- Supplier Device Package: -
- Size / Dimension: 1.500" L x 0.155" W (38.10mm x 3.94mm)
- Height - Seated (Max): 0.520" (13.21mm)
Related Products
Panasonic Electronic Components

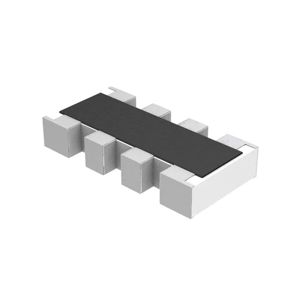

EXB-28V331JX
YAGEO
TC124-FR-07536KL
CTS Resistor Products

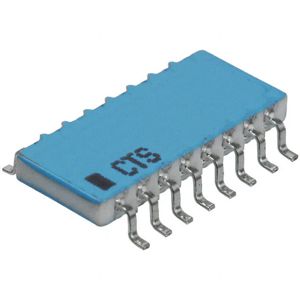

767161201GPTR13
Bourns Inc.

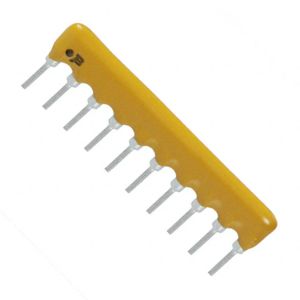

4610X-101-274LF
YAGEO

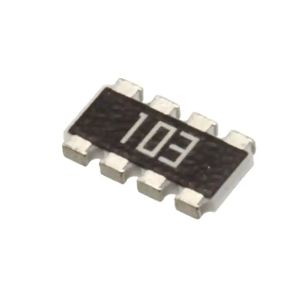

YC324-JK-0724KL
Vishay Dale Thin Film
ORNTA5000DT1
Bourns Inc.
4818P-2-200
YAGEO

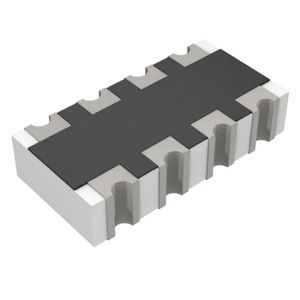

TC124-FR-07210KL
YAGEO

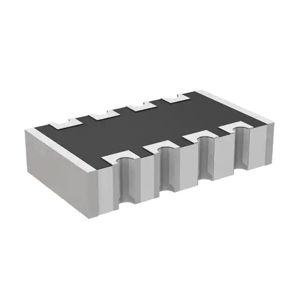

TC164-FR-079K1L
