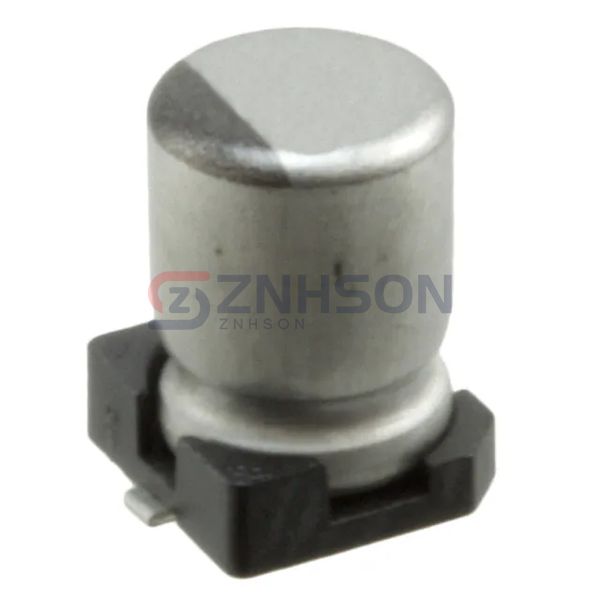

UUT1H2R2MCL1GS
Nichicon
Nichicon
CAP ALUM 2.2UF 20% 50V SMD
$0.37
Available to order
Reference Price (USD)
2,000+
$0.06760
4,000+
$0.06253
10,000+
$0.05915
14,000+
$0.05611
50,000+
$0.05070
100,000+
$0.04479
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior performance with UUT1H2R2MCL1GS Aluminum Electrolytic Capacitors from Nichicon. These capacitors are designed to meet the highest industry standards, offering low leakage current, high voltage ratings, and excellent thermal stability. Ideal for medical devices, renewable energy systems, and military applications, UUT1H2R2MCL1GS provides the reliability you need. Don't hesitate contact us now for more details and pricing options.
Specifications
- Product Status: Not For New Designs
- Capacitance: 2.2 µF
- Tolerance: ±20%
- Voltage - Rated: 50 V
- ESR (Equivalent Series Resistance): -
- Lifetime @ Temp.: 2000 Hrs @ 105°C
- Operating Temperature: -55°C ~ 105°C
- Polarization: Polar
- Ratings: -
- Applications: General Purpose
- Ripple Current @ Low Frequency: 11 mA @ 120 Hz
- Ripple Current @ High Frequency: 16.5 mA @ 10 kHz
- Impedance: -
- Lead Spacing: -
- Size / Dimension: 0.157" Dia (4.00mm)
- Height - Seated (Max): 0.240" (6.10mm)
- Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
- Mounting Type: Surface Mount
- Package / Case: Radial, Can - SMD
