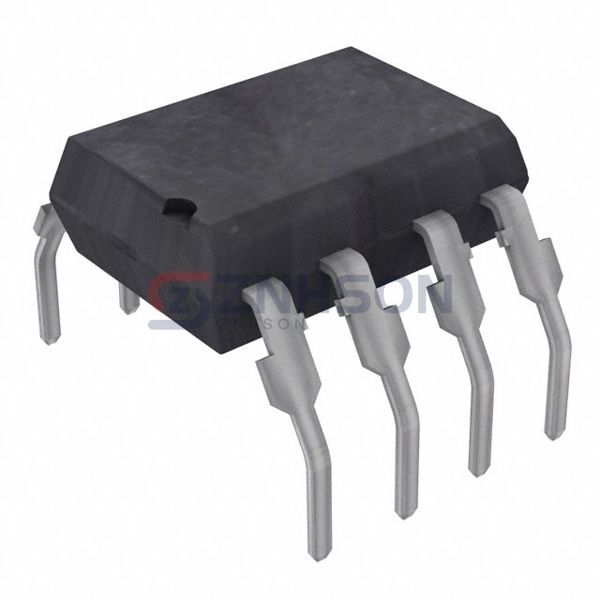

VOD3120AG
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISO IGBT MOSFET DRIVER 2.5A
$2.27
Available to order
Reference Price (USD)
1+
$2.05000
10+
$1.81400
50+
$1.34560
100+
$1.17000
250+
$1.05300
500+
$0.93600
1,000+
$0.80438
2,500+
$0.76050
5,000+
$0.73125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Vishay Semiconductor Opto Division VOD3120AG Gate Driver Isolators provide reliable and efficient isolation for advanced power electronics. With features like low jitter, high CMTI, and extended lifecycle, they are ideal for industrial robots, energy storage systems, and consumer electronics. Unlock superior performance get in touch for expert advice!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5300Vrms
- Common Mode Transient Immunity (Min): 35kV/µs
- Propagation Delay tpLH / tpHL (Max): 500ns, 500ns
- Pulse Width Distortion (Max): 70ns
- Rise / Fall Time (Typ): 35ns, 35ns
- Current - Output High, Low: 2.5A
- Current - Peak Output: 2.5A
- Voltage - Forward (Vf) (Typ): 1.37V
- Current - DC Forward (If) (Max): 20 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.400", 10.16mm)
- Supplier Device Package: 8-DIP
- Approval Agency: CQC, cUL, UL, VDE
