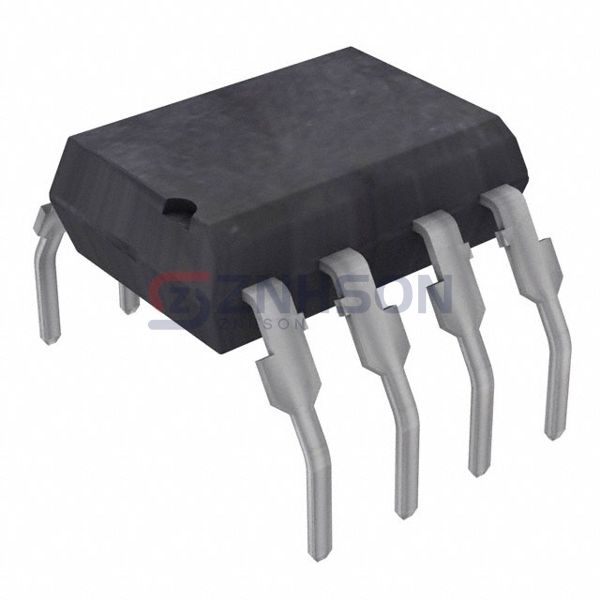

VOD3120AG-V
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISO IGBT MOSFET DRIVER 2.5A
$2.31
Available to order
Reference Price (USD)
1+
$2.08000
10+
$1.84500
50+
$1.36860
100+
$1.19000
250+
$1.07100
500+
$0.95200
1,000+
$0.81813
2,500+
$0.77350
5,000+
$0.74375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Vishay Semiconductor Opto Division VOD3120AG-V Gate Driver Isolators, engineered for superior isolation and efficiency. Key features include low propagation delay, high common-mode transient immunity, and wide temperature range compatibility. Perfect for renewable energy systems, automation controls, and medical equipment, these isolators deliver unmatched performance. Ready to optimize your design? Request a quote now!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5300Vrms
- Common Mode Transient Immunity (Min): 35kV/µs
- Propagation Delay tpLH / tpHL (Max): 500ns, 500ns
- Pulse Width Distortion (Max): 70ns
- Rise / Fall Time (Typ): 35ns, 35ns
- Current - Output High, Low: 2.5A
- Current - Peak Output: 2.5A
- Voltage - Forward (Vf) (Typ): 1.37V
- Current - DC Forward (If) (Max): 20 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.400", 10.16mm)
- Supplier Device Package: 8-DIP
- Approval Agency: CQC, cUL, UL, VDE
