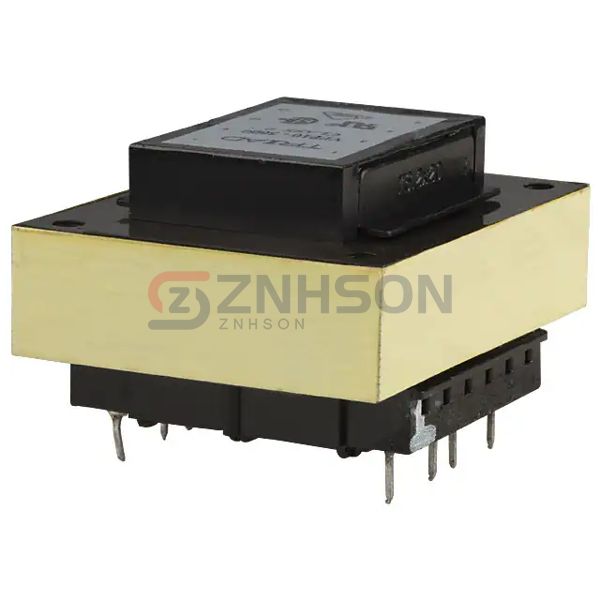

VPP12-4400-B
Triad Magnetics
Triad Magnetics
PWR XFMR LAMINATED 56VA TH
$18.95
Available to order
Reference Price (USD)
15+
$14.78667
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Triad Magnetics VPP12-4400-B Power Transformers are the backbone of modern electrical grids, providing seamless energy transmission. With features like overload protection, eco-friendly design, and easy maintenance, these transformers are a smart investment. They are widely used in renewable energy projects, urban development, and heavy industries. Their adaptability and performance make them a top choice for engineers worldwide. Don't miss out request a quote today and discover how these transformers can meet your specific needs!
Specifications
- Product Status: Active
- Type: Laminated Core
- Voltage - Primary: 115V, 230V
- Voltage - Secondary (Full Load): Parallel 6.3V, Series 12.6V
- Current - Output (Max): Parallel 8.8A, Series 4.4A
- Primary Winding(s): Dual
- Secondary Winding(s): Dual
- Center Tap: No
- Power - Max: 56VA
- Mounting Type: Through Hole
- Termination Style: PC Pin
- Size / Dimension: 76.20mm L x 63.50mm W
- Height - Seated (Max): 46.02mm
- Voltage - Isolation: 4000Vrms
- Weight: 1.7 lbs (771.1 g)
Related Products
Signal Transformer
M4L-2-3
Hammond Manufacturing
266M25
Signal Transformer
DPC-56-20

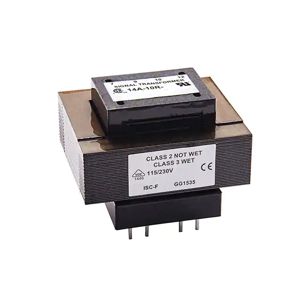

Signal Transformer
