W2222-00
Harwin Inc.
Harwin Inc.

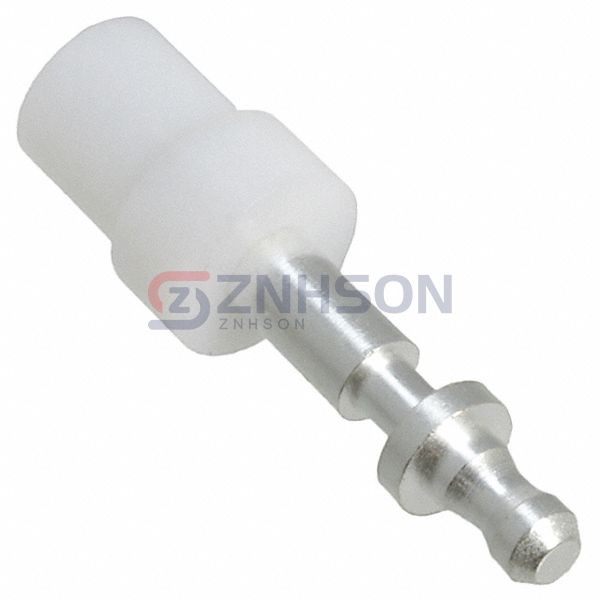

TERM TURRET PIN L=6.5MM SILVER
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with W2222-00 Turret Connectors from Harwin Inc.. Featuring a versatile design and superior conductivity, these terminals are perfect for prototyping and mass production. Applications range from medical devices to military equipment. Let us assist you in selecting the right connector. Request a quote now and take the first step toward better connectivity.
Specifications
- Product Status: Obsolete
- Terminal Type: Double End, Pin
- Number of Turrets: Single
- Length - Above Board: 0.256" (6.50mm)
- Length - Below Flange: 0.303" (7.70mm)
- Length - Overall: 0.560" (14.22mm)
- Mounting Type: Through Hole
- Termination: Press-Fit
- Flange Diameter: 0.187" (4.75mm)
- Diameter - Turret Head: -
- Staking Side OD: -
- Staking Side ID: -
- Mounting Hole Diameter: 0.156" (3.96mm)
- Board Thickness: 0.028" ~ 0.063" (0.72mm ~ 1.60mm)
- Contact Material: Brass
- Contact Finish: Silver
- Contact Finish Thickness: 137.8µin (3.50µm)
- Insulation: Insulated
