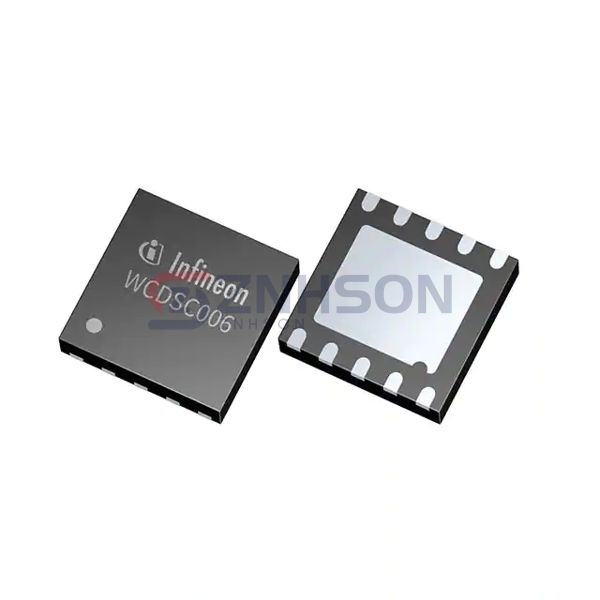

WCDSC006XUMA1
Infineon Technologies
Infineon Technologies
DRIVER
$1.81
Available to order
Reference Price (USD)
1+
$1.81000
500+
$1.7919
1000+
$1.7738
1500+
$1.7557
2000+
$1.7376
2500+
$1.7195
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Infineon Technologies WCDSC006XUMA1 series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge
- Applications: General Purpose
- Interface: Logic, PWM
- Load Type: Inductive, Capacitive, Resistive
- Technology: Power MOSFET
- Rds On (Typ): 800mOhm LS (Max), 2Ohm HS (Max)
- Current - Output / Channel: 2A
- Current - Peak Output: 2A
- Voltage - Supply: 4.75V ~ 5.5V
- Voltage - Load: 4.75V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C (TJ)
- Features: -
- Fault Protection: Current Limiting, Shoot-Through, UVLO
- Mounting Type: Surface Mount
- Package / Case: 10-WDFN Exposed Pad
- Supplier Device Package: PG-WSON-10
