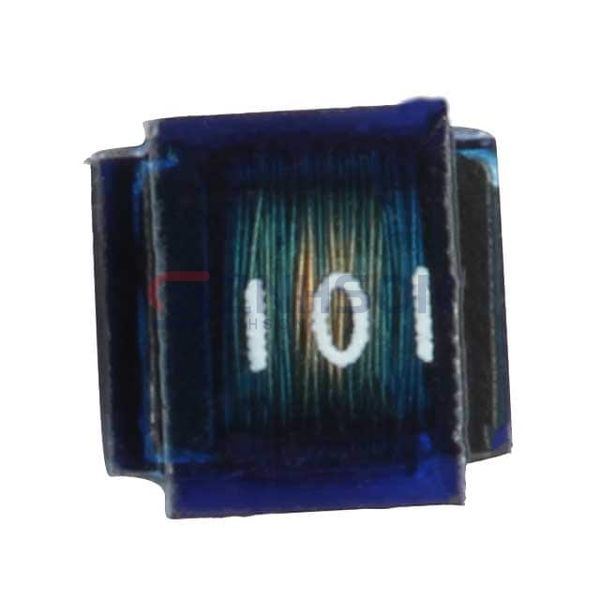

WCL2520-2R2-R
Eaton - Electronics Division
Eaton - Electronics Division
FIXED IND 2.2UH 315MA 1.3OHM SMD
$0.26
Available to order
Reference Price (USD)
1+
$0.26000
500+
$0.2574
1000+
$0.2548
1500+
$0.2522
2000+
$0.2496
2500+
$0.247
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your projects with WCL2520-2R2-R Fixed Inductors by Eaton - Electronics Division, engineered for optimal efficiency and durability. With features like high Q factor, minimal core losses, and compact designs, these inductors are perfect for telecommunications, automotive systems, and energy management. WCL2520-2R2-R ensures superior performance in demanding environments. Ready to enhance your designs? Request a sample or inquire about pricing now!
Specifications
- Product Status: Active
- Type: Drum Core, Wirewound
- Material - Core: Ceramic
- Inductance: 2.2 µH
- Tolerance: ±5%
- Current Rating (Amps): 315 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 1.3Ohm Max
- Q @ Freq: 12 @ 7.96MHz
- Frequency - Self Resonant: 150MHz
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Inductance Frequency - Test: 7.96 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 1008 (2520 Metric)
- Supplier Device Package: 1008
- Size / Dimension: 0.115" L x 0.110" W (2.92mm x 2.79mm)
- Height - Seated (Max): 0.083" (2.10mm)
