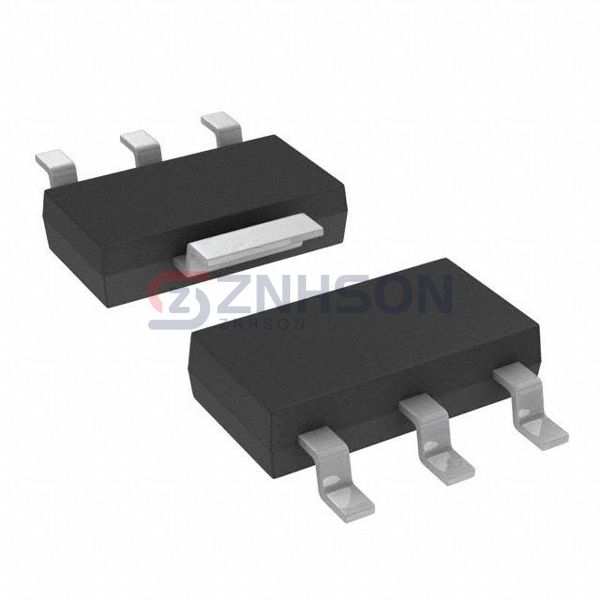

X0202NN 5BA4
STMicroelectronics
STMicroelectronics
SCR 800V 1.25A SOT223
$1.17
Available to order
Reference Price (USD)
1,000+
$0.51545
2,000+
$0.48495
5,000+
$0.46360
10,000+
$0.44835
25,000+
$0.43615
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
STMicroelectronics's X0202NN 5BA4 Thyristors - SCRs provide cutting-edge technology for modern power electronics. With features like high commutation capability, low gate trigger current, and robust isolation, these SCRs are perfect for traction systems, induction heating, and defense applications. STMicroelectronics ensures quality and performance with every unit. Need a reliable supplier? Get in touch today for a customized quote.
Specifications
- Product Status: Active
- Voltage - Off State: 800 V
- Voltage - Gate Trigger (Vgt) (Max): 800 mV
- Current - Gate Trigger (Igt) (Max): 200 µA
- Voltage - On State (Vtm) (Max): 1.45 V
- Current - On State (It (AV)) (Max): 800 mA
- Current - On State (It (RMS)) (Max): 1.25 A
- Current - Hold (Ih) (Max): 5 mA
- Current - Off State (Max): 5 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 22.5A, 25A
- SCR Type: Sensitive Gate
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: TO-261-4, TO-261AA
- Supplier Device Package: SOT-223
