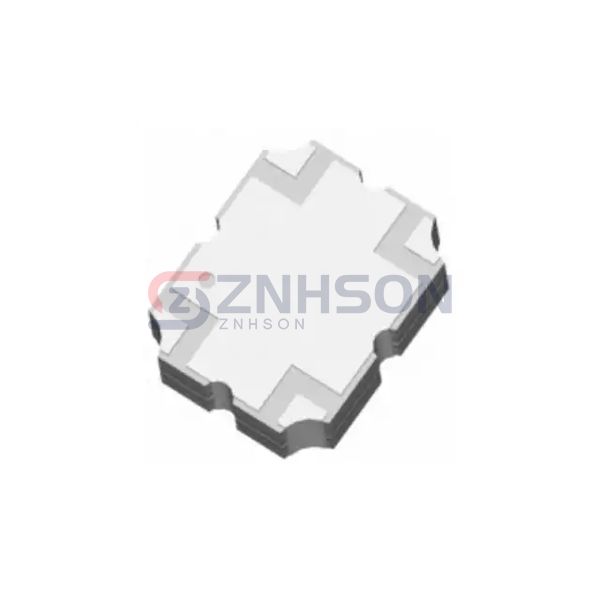

XC1500A-20S
TTM Technologies, Inc.
TTM Technologies, Inc.
RF DIR COUPLER 1GHZ-2GHZ SMD
$7.75
Available to order
Reference Price (USD)
2,000+
$3.10000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your system's RF performance with TTM Technologies, Inc.'s XC1500A-20S high-directivity couplers. These units provide precise 20-30dB coupling factors with outstanding amplitude balance for phase-sensitive applications. The stainless steel housing offers superior corrosion resistance in marine environments. Commonly deployed in quantum computing research and medical imaging systems. Custom frequency ranges available upon request. Email our engineering team for application notes and design-in support.
Specifications
- Product Status: Active
- Coupler Type: Standard
- Frequency: 1GHz ~ 2GHz
- Coupling Factor: 20dB
- Applications: General Purpose
- Insertion Loss: 0.19dB
- Power - Max: 160W
- Isolation: -
- Return Loss: -
- Package / Case: 4-SMD, No Lead
- Supplier Device Package: SMD
