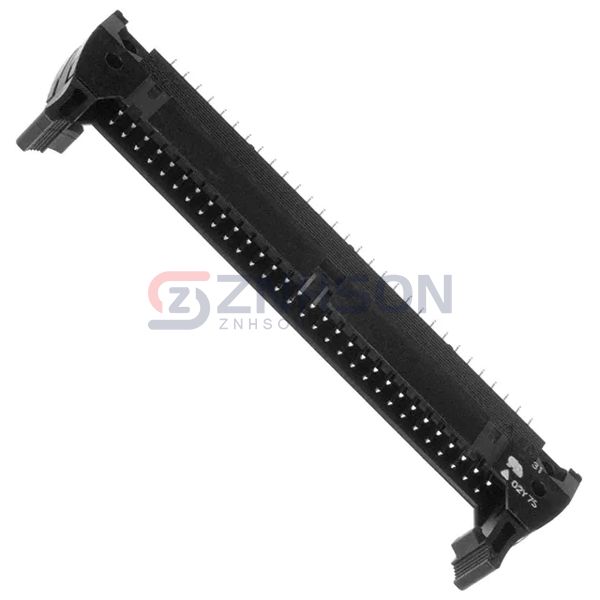

XG4A-6071
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div
CONN HEADER VERT 60POS 2.54MM
$5.14
Available to order
Reference Price (USD)
1+
$5.23000
10+
$5.02900
100+
$4.24880
500+
$3.66358
1,000+
$3.17583
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The XG4A-6071 Omron Electronics Inc-EMC Div Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Omron Electronics Inc-EMC Div difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 60
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.657" (16.70mm)
- Insulation Height: 0.669" (17.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Tin
- Contact Material: Brass, Nickel
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 300V
