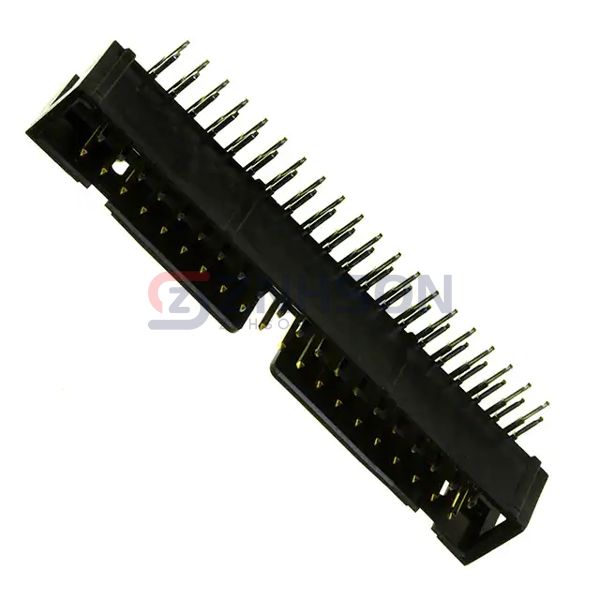

XG4C-4034
Omron Electronics Inc-EMC Div

Omron Electronics Inc-EMC Div
CONN HEADER R/A 40POS 2.54MM
$2.86
Available to order
Reference Price (USD)
1+
$2.33000
50+
$1.96080
100+
$1.86750
500+
$1.58738
1,000+
$1.35394
5,000+
$1.34875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The XG4C-4034 Omron Electronics Inc-EMC Div Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.323" (8.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Tin
- Contact Material: Brass, Nickel
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 300V
