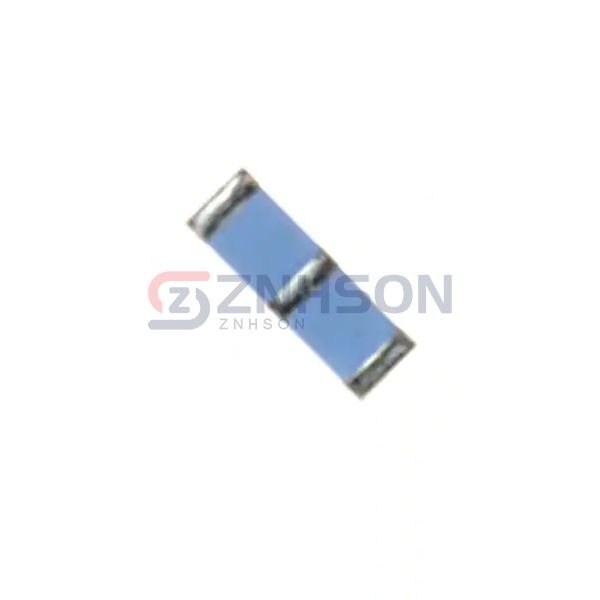

Y1685V0005AT9R
Vishay Foil Resistors (Division of Vishay Precisio
Vishay Foil Resistors (Division of Vishay Precisio
RES NETWORK 2 RES MULT OHM 1505
$10.46
Available to order
Reference Price (USD)
1,000+
$10.71875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet Y1685V0005AT9R Vishay Foil Resistors (Division of Vishay Precisio's breakthrough in high-density resistor array technology. Each network integrates 8-32 resistors with laser-trimmed accuracy ( 0.5% standard), reducing board space by up to 70% versus discrete options. Particularly effective in: LED driver current regulation, PLC I/O modules, and test equipment calibration circuits. All products undergo 100% automated testing with full traceability. Click 'Request Quote' for volume discounts or MIL-SPEC versions.
Specifications
- Product Status: Active
- Circuit Type: Voltage Divider
- Resistance (Ohms): 5k, 10k
- Tolerance: ±0.05%
- Number of Resistors: 2
- Resistor Matching Ratio: ±0.01%
- Resistor-Ratio-Drift: ±0.4ppm/°C
- Number of Pins: 3
- Power Per Element: 50mW
- Temperature Coefficient: ±0.2ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: Voltage Divider (TCR Matched)
- Mounting Type: Surface Mount
- Package / Case: 1505 (3812 Metric)
- Supplier Device Package: -
- Size / Dimension: 0.150" L x 0.050" W (3.81mm x 1.27mm)
- Height - Seated (Max): 0.025" (0.64mm)
