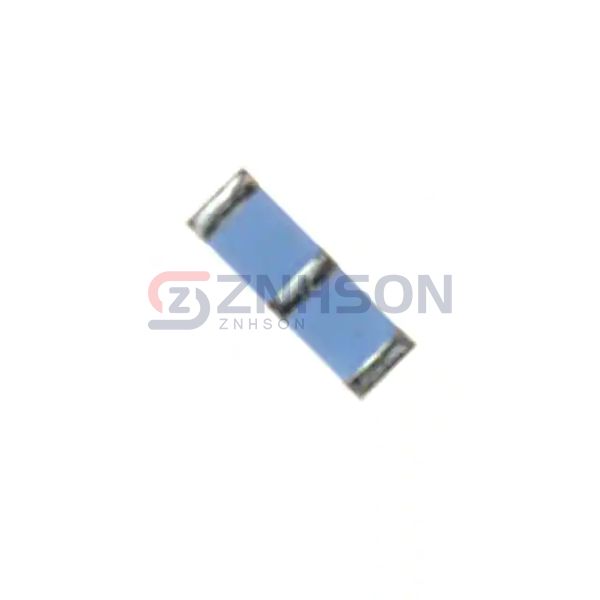

Y1685V0064TT0R
Vishay Foil Resistors (Division of Vishay Precisio
Vishay Foil Resistors (Division of Vishay Precisio
RES NETWORK 2 RES MULT OHM 1505
$12.20
Available to order
Reference Price (USD)
2,500+
$12.24000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Vishay Foil Resistors (Division of Vishay Precisio's Y1685V0064TT0R resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every Y1685V0064TT0R unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Voltage Divider
- Resistance (Ohms): 1k, 10k
- Tolerance: ±0.01%
- Number of Resistors: 2
- Resistor Matching Ratio: ±0.01%
- Resistor-Ratio-Drift: ±0.4ppm/°C
- Number of Pins: 3
- Power Per Element: 50mW
- Temperature Coefficient: ±0.2ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: Voltage Divider (TCR Matched)
- Mounting Type: Surface Mount
- Package / Case: 1505 (3812 Metric)
- Supplier Device Package: -
- Size / Dimension: 0.150" L x 0.050" W (3.81mm x 1.27mm)
- Height - Seated (Max): 0.025" (0.64mm)
Related Products
Vishay Dale
MDP16012K00GE04
YAGEO
YC164-FR-07182RL
YAGEO
YC164-FR-0727RL
Vishay Foil Resistors (Division of Vishay Precisio
Y1747V0178AA0R
Bourns Inc.

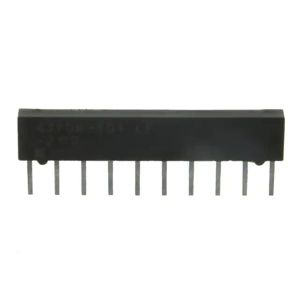

4310R-102-331LF
YAGEO
YC124-FR-077K5L
Panasonic Electronic Components

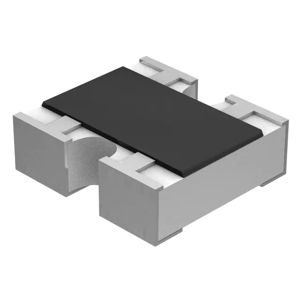

EXB-34V180JV
Samsung Electro-Mechanics

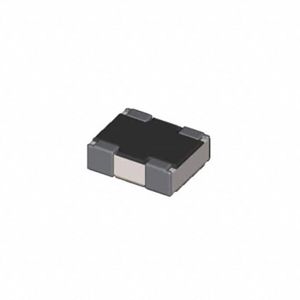

RF062PJ271CS
Panasonic Electronic Components

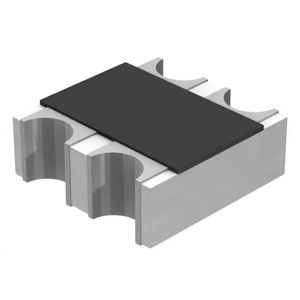

EXB-V4V620JV
