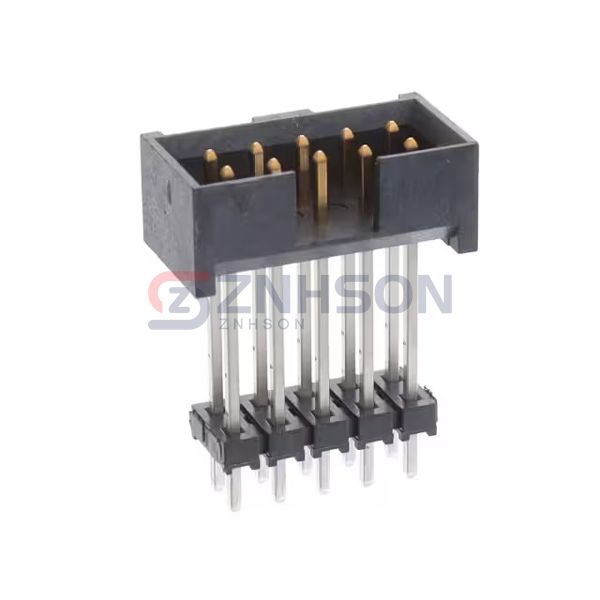

ZLTMM-105-69-F-D-529
Samtec Inc.
Samtec Inc.
2.00 MM SHROUDED VARIABLE STACK
$6.22
Available to order
Reference Price (USD)
1+
$6.22000
500+
$6.1578
1000+
$6.0956
1500+
$6.0334
2000+
$5.9712
2500+
$5.909
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZLTMM-105-69-F-D-529 Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.614" (15.60mm)
- Insulation Height: 0.529" (13.44mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
