ZSS-105-02-L-D-640
Samtec Inc.
Samtec Inc.

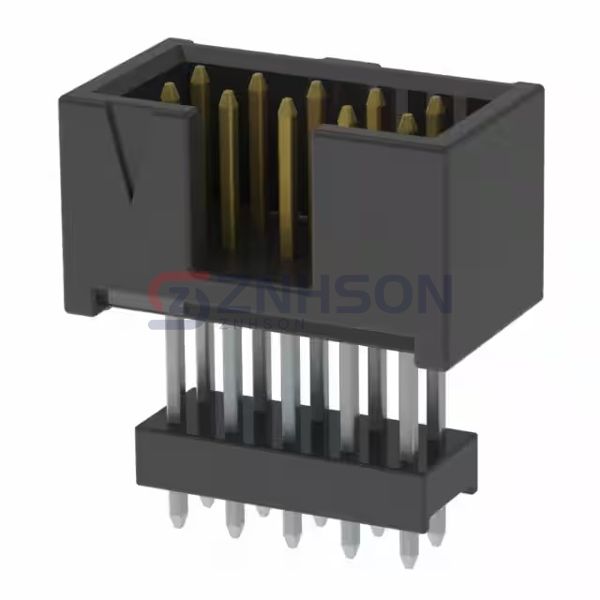

CONN HDR .100" 10POS
$3.54
Available to order
Reference Price (USD)
1+
$3.54000
500+
$3.5046
1000+
$3.4692
1500+
$3.4338
2000+
$3.3984
2500+
$3.363
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier connectivity with ZSS-105-02-L-D-640 Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors offer superior signal integrity, easy assembly, and long-term reliability for diverse applications. Whether for automotive, industrial, or consumer electronics, Samtec Inc. has you covered. Interested? Reach out to us for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.730" (18.54mm)
- Insulation Height: 0.640" (16.26mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
