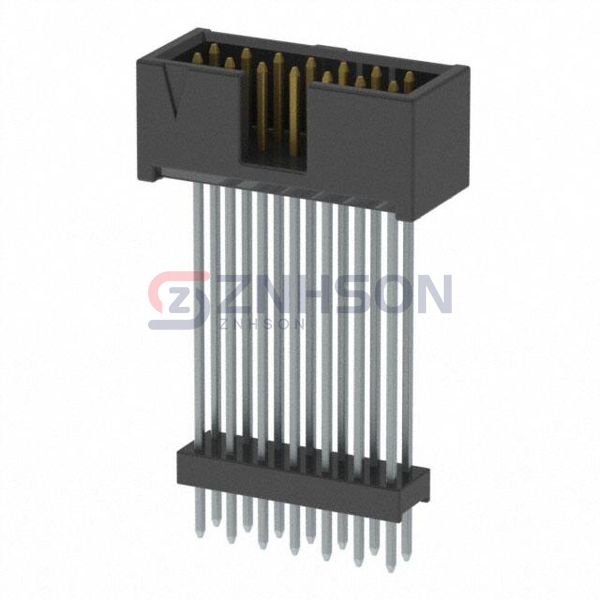

ZSS-107-09-L-D-1240
Samtec Inc.
Samtec Inc.
CONN HDR .100" 14POS
$4.36
Available to order
Reference Price (USD)
1+
$4.36000
500+
$4.3164
1000+
$4.2728
1500+
$4.2292
2000+
$4.1856
2500+
$4.142
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-107-09-L-D-1240 Samtec Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Samtec Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.190" (4.83mm)
- Overall Contact Length: 1.430" (36.32mm)
- Insulation Height: 1.240" (31.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
BBL-104-G-E
3M
30314-5002HB
Samtec Inc.
ZSS-105-06-G-D-1000
Preci-Dip
854-10-099-20-001101
Samtec Inc.
FTSH-130-01-L-DH
Amphenol ICC (FCI)
67996-132HLF
Amphenol ICC (FCI)

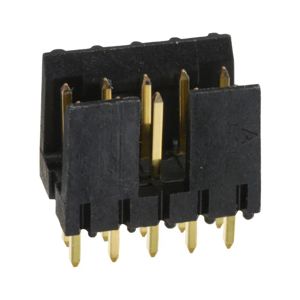

69168-110
