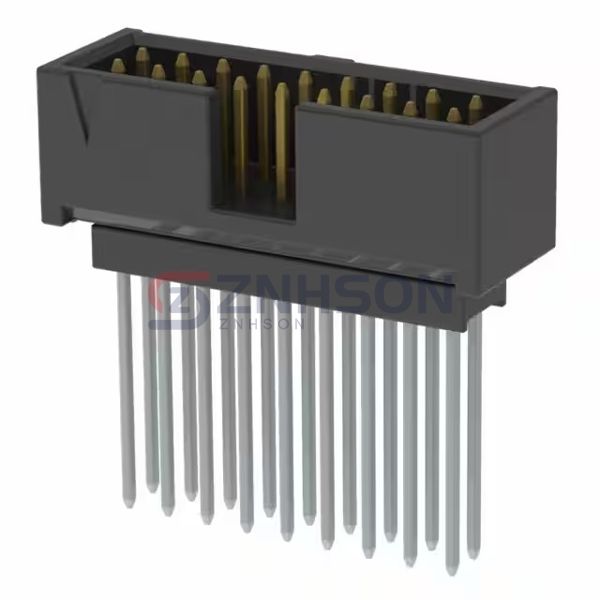

ZSS-109-05-L-D-490
Samtec Inc.
Samtec Inc.
CONN HDR .100" 18POS
$4.72
Available to order
Reference Price (USD)
1+
$4.72000
500+
$4.6728
1000+
$4.6256
1500+
$4.5784
2000+
$4.5312
2500+
$4.484
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with ZSS-109-05-L-D-490 Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.540" (13.72mm)
- Overall Contact Length: 1.030" (26.16mm)
- Insulation Height: 0.490" (12.45mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-107-07-T-T-LL
Preci-Dip
892-80-054-10-003101
Molex
0022288253
Samtec Inc.

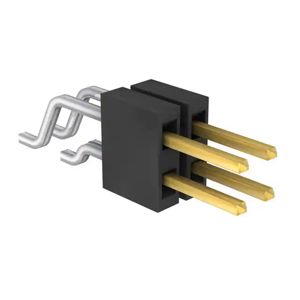

FTSH-102-04-F-DH
Samtec Inc.

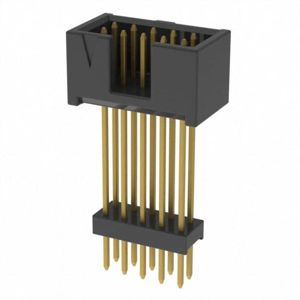

ZSS-105-07-G-D-1040
TE Connectivity AMP Connectors

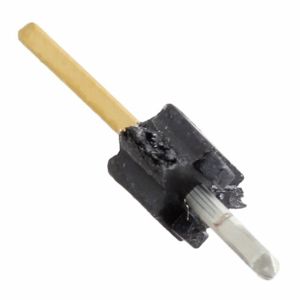

5-146858-1
Preci-Dip

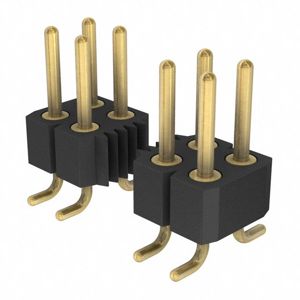

802-10-048-30-001101
Samtec Inc.

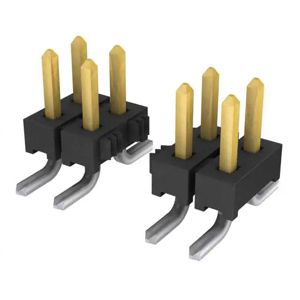

TMM-106-04-S-D-SM
