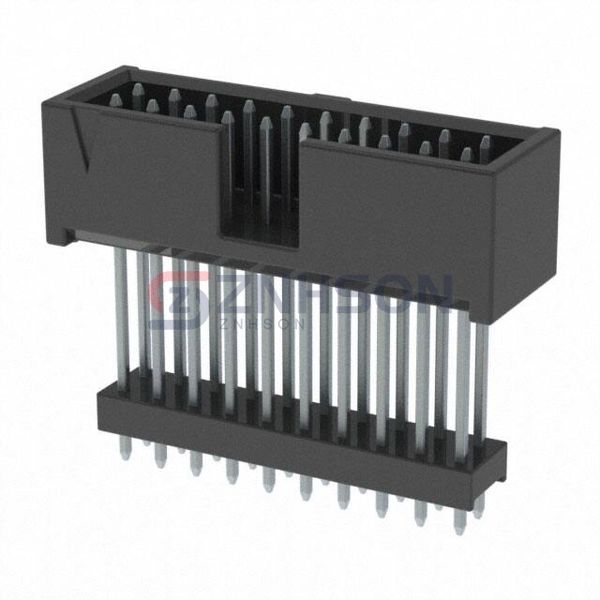

ZSS-110-04-T-D-815
Samtec Inc.
Samtec Inc.
CONN HDR .100" 20POS
$2.97
Available to order
Reference Price (USD)
1+
$2.97000
500+
$2.9403
1000+
$2.9106
1500+
$2.8809
2000+
$2.8512
2500+
$2.8215
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-110-04-T-D-815 Samtec Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Samtec Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.115" (2.92mm)
- Overall Contact Length: 0.930" (23.62mm)
- Insulation Height: 0.815" (20.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
4-103783-0-15
Molex
0039295183
Samtec Inc.
TFC-140-02-F-D-K
Amphenol ICC (FCI)
75869-306LF
Samtec Inc.
TSW-148-07-L-D
3M
N3408-6003RB
TE Connectivity AMP Connectors
2232532-2
Molex
0022284182
Samtec Inc.

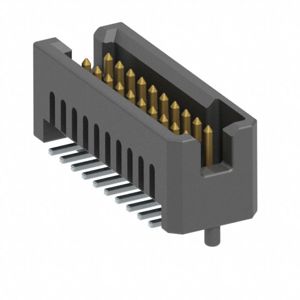

TFM-110-02-SM-D-A-P-TR
