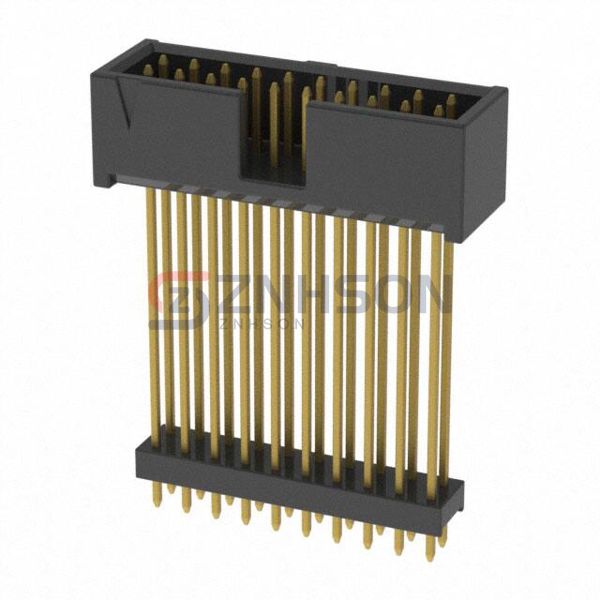

ZSS-110-09-G-D-1340
Samtec Inc.
Samtec Inc.
CONN HDR .100" 20POS
$5.93
Available to order
Reference Price (USD)
1+
$5.93000
500+
$5.8707
1000+
$5.8114
1500+
$5.7521
2000+
$5.6928
2500+
$5.6335
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-110-09-G-D-1340 Samtec Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 1.430" (36.32mm)
- Insulation Height: 1.340" (34.04mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
640501-4
TE Connectivity AMP Connectors
292232-7
Samtec Inc.
TSM-107-01-L-DV-P
Samtec Inc.
FTMH-109-03-L-DH-K-TR
Amphenol ICC (FCI)
76385-316LF
Samtec Inc.
MMT-103-02-S-SH-P-TR
TE Connectivity AMP Connectors
2-1445100-9
Mill-Max Manufacturing Corp.
850-10-012-30-002000
Samtec Inc.

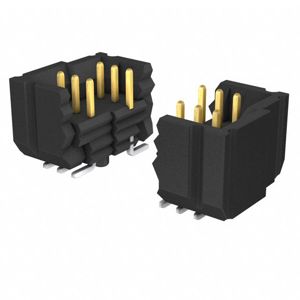

BKT-141-03-L-V-S-A
