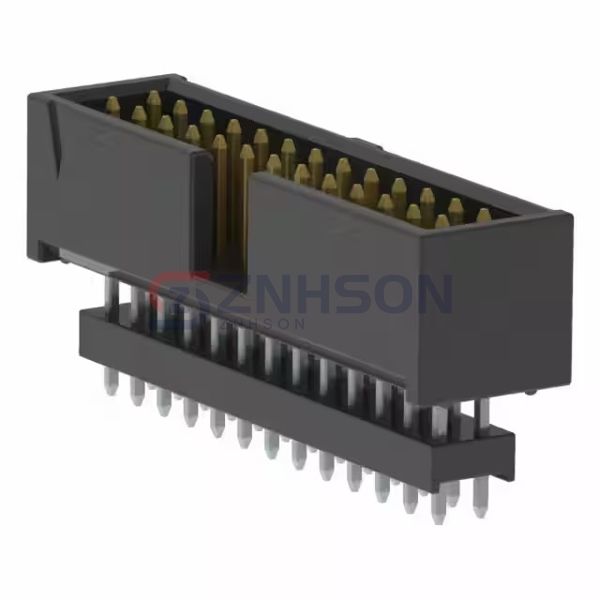

ZSS-113-01-S-D-520
Samtec Inc.
Samtec Inc.
CONN HDR .100" 26POS
$7.08
Available to order
Reference Price (USD)
1+
$7.08000
500+
$7.0092
1000+
$6.9384
1500+
$6.8676
2000+
$6.7968
2500+
$6.726
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with ZSS-113-01-S-D-520 Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.630" (16.00mm)
- Insulation Height: 0.520" (13.21mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-103-01-T-DV-LC-TR
Samtec Inc.
MMT-120-01-T-DH-K
Molex
0877581217
Samtec Inc.
TSM-105-02-T-DV-TR
Amphenol Sine Systems Corp
AT15-6P-BM02GRY
Preci-Dip
892-70-008-10-004101
HARTING
09185346911
TE Connectivity AMP Connectors
5-102202-3
Cvilux USA

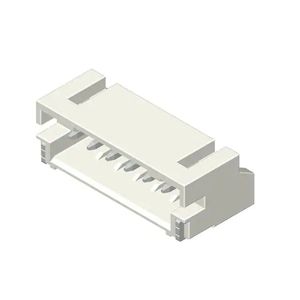

CI0102M1HR0-NH
