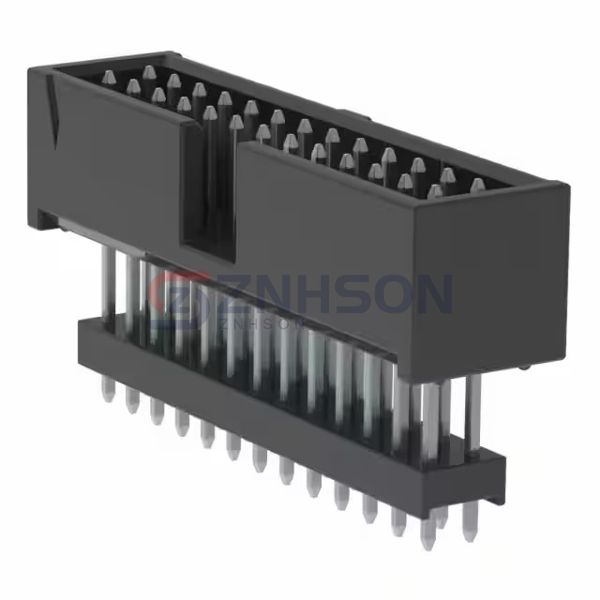

ZSS-113-02-T-D-640
Samtec Inc.
Samtec Inc.
CONN HDR .100" 26POS
$3.18
Available to order
Reference Price (USD)
1+
$3.18000
500+
$3.1482
1000+
$3.1164
1500+
$3.0846
2000+
$3.0528
2500+
$3.021
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with ZSS-113-02-T-D-640 Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.730" (18.54mm)
- Insulation Height: 0.640" (16.26mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
4-146257-4
3M
929834-01-24
Samtec Inc.
HTSW-108-23-G-D
Samtec Inc.
TMM-103-04-F-S
Amphenol ICC (FCI)
77315-118-17LF
TE Connectivity AMP Connectors
5-103908-2
Samtec Inc.
MMT-117-02-S-MT
Hirose Electric Co Ltd
DF13C-8P-1.25V(21)
Amphenol ICC (FCI)

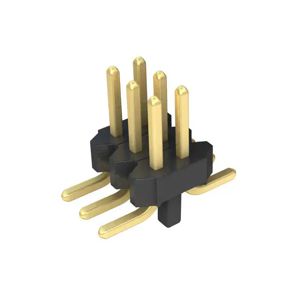

20021121-00006D1LF
