ZSS-116-03-L-D-690
Samtec Inc.
Samtec Inc.
CONN HDR .100" 32POS
$6.35
Available to order
Reference Price (USD)
1+
$6.35000
500+
$6.2865
1000+
$6.223
1500+
$6.1595
2000+
$6.096
2500+
$6.0325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-116-03-L-D-690 Samtec Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 32
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.140" (3.56mm)
- Overall Contact Length: 0.830" (21.08mm)
- Insulation Height: 0.690" (17.53mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Würth Elektronik
662103136022
Samtec Inc.
IPBT-105-H2-T-D-K
Mill-Max Manufacturing Corp.
850-90-046-10-001000
Preci-Dip
890-18-034-10-003101
CNC Tech
3210-20-003-12-00
JST Sales America Inc.
BM07B-SRSS-TB(LF)(SN)
Samtec Inc.

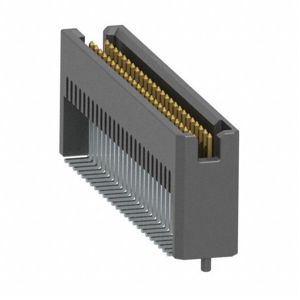

TFM-125-32-S-D-A-P-TR
Amphenol ICC (FCI)

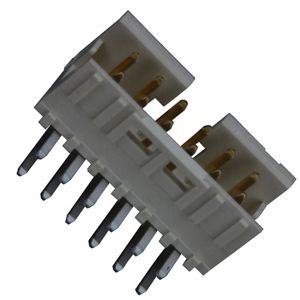

10072354-G01-12ULF
