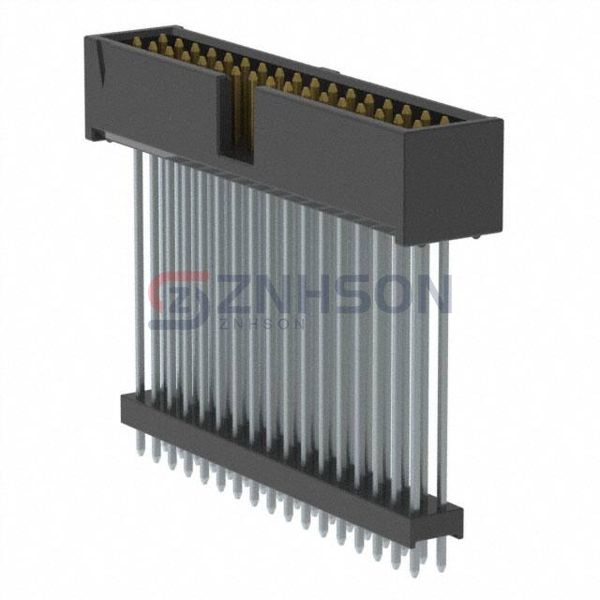

ZSS-117-09-S-D-1315
Samtec Inc.
Samtec Inc.
CONN HDR .100" 34POS
$11.11
Available to order
Reference Price (USD)
1+
$11.11000
500+
$10.9989
1000+
$10.8878
1500+
$10.7767
2000+
$10.6656
2500+
$10.5545
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with ZSS-117-09-S-D-1315 Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.115" (2.92mm)
- Overall Contact Length: 1.430" (36.32mm)
- Insulation Height: 1.315" (33.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0022285361
Sullins Connector Solutions
PEC24SFCN
TE Connectivity AMP Connectors
9-146256-0-27
Preci-Dip
802-10-050-20-001101
HARTING

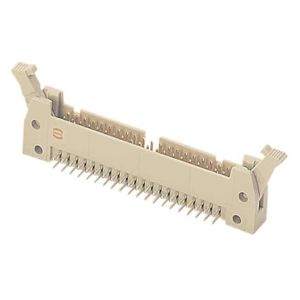

09185645903
Preci-Dip

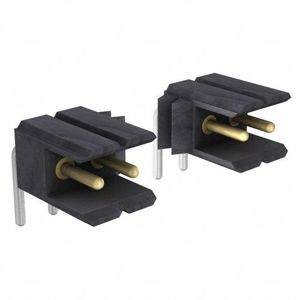

800-V3-018-22-002101
Samtec Inc.
TSM-107-02-S-DV-014
Mill-Max Manufacturing Corp.

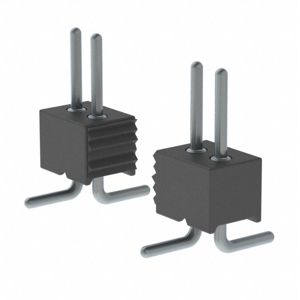

850-90-032-30-001000
