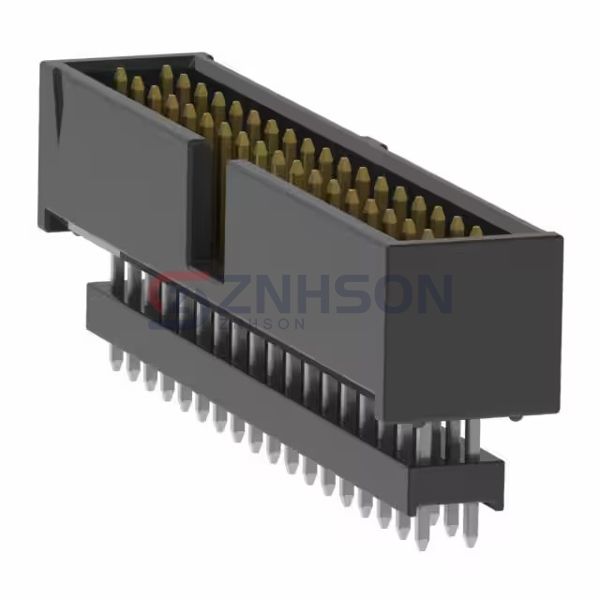

ZSS-118-01-L-D-540
Samtec Inc.
Samtec Inc.
CONN HDR .100" 36POS
$6.43
Available to order
Reference Price (USD)
1+
$6.43000
500+
$6.3657
1000+
$6.3014
1500+
$6.2371
2000+
$6.1728
2500+
$6.1085
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with ZSS-118-01-L-D-540 Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 36
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.630" (16.00mm)
- Insulation Height: 0.540" (13.72mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-122-06-G-D-SM-P-TR
Sullins Connector Solutions
PEC17SABN
Sullins Connector Solutions
PBC03DFBN
Samtec Inc.
EHT-106-01-S-D-SM
TE Connectivity AMP Connectors
1-104353-0
Preci-Dip
880-70-003-10-001101
Molex
0705530023
Samtec Inc.
BKT-141-01-L-V-P

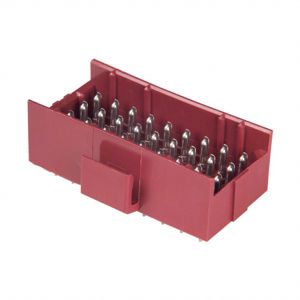

TE Connectivity AMP Connectors
