ZSS-120-02-G-D-540-LL
Samtec Inc.
Samtec Inc.
CONN HDR .100" 40POS
$8.45
Available to order
Reference Price (USD)
1+
$8.45000
500+
$8.3655
1000+
$8.281
1500+
$8.1965
2000+
$8.112
2500+
$8.0275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with ZSS-120-02-G-D-540-LL Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.190" (4.83mm)
- Overall Contact Length: 0.730" (18.54mm)
- Insulation Height: 0.540" (13.72mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TMMH-138-01-G-D
Preci-Dip
351-80-133-00-005101
Amphenol ICC (FCI)
69192-204HLF
Samtec Inc.
TMM-110-06-LM-D-SM-A-TR
Preci-Dip

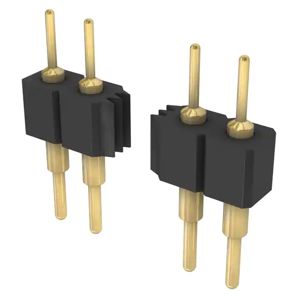

351-10-124-00-016101
TE Connectivity AMP Connectors

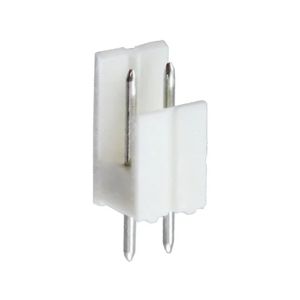

828548-2
Samtec Inc.

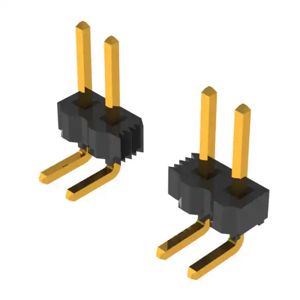

TSW-130-08-G-S-RA
Molex

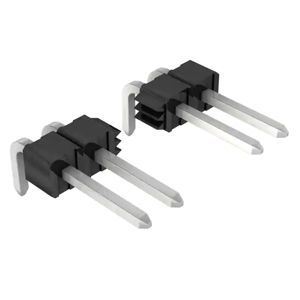

0022289090
TE Connectivity AMP Connectors

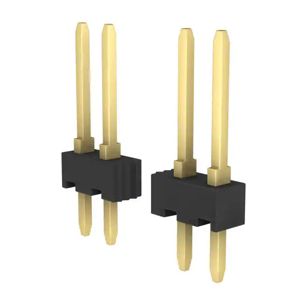

4-87220-0
