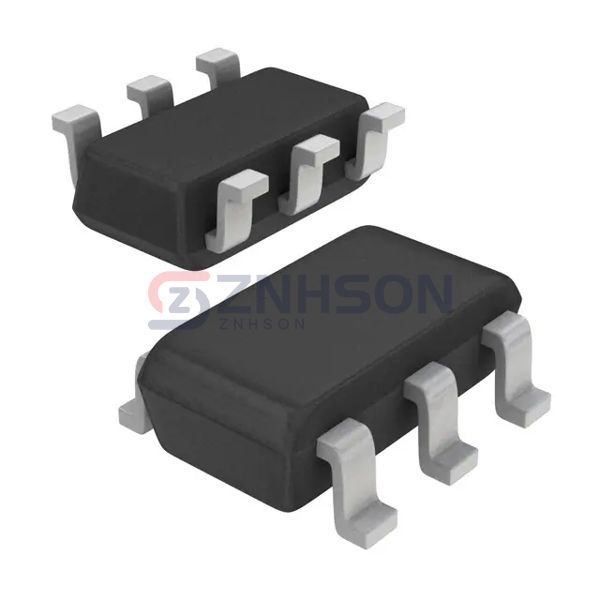

ZXMN2A03E6TA
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 20V 3.7A SOT23-6
$0.91
Available to order
Reference Price (USD)
1+
$0.91000
500+
$0.9009
1000+
$0.8918
1500+
$0.8827
2000+
$0.8736
2500+
$0.8645
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance ZXMN2A03E6TA from Diodes Incorporated, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, ZXMN2A03E6TA delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 55mOhm @ 7.2A, 4.5V
- Vgs(th) (Max) @ Id: 700mV @ 250µA (Min)
- Gate Charge (Qg) (Max) @ Vgs: 8.2 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 837 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-6
- Package / Case: SOT-23-6
