0015911060
Molex
Molex
CONN HEADER SMD 6POS 2.54MM
$0.73
Available to order
Reference Price (USD)
6,000+
$0.60508
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0015911060 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
826947-4
Samtec Inc.
TSW-111-06-G-S
TE Connectivity AMP Connectors
102160-3
Sullins Connector Solutions
PBC22DACN
Samtec Inc.
TSM-120-02-L-DV-A
Samtec Inc.

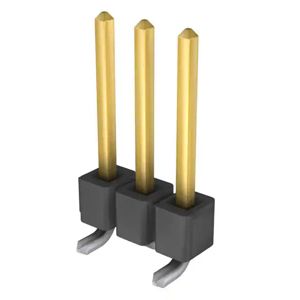

TSM-103-02-LM-SV-P-TR
Samtec Inc.
TSW-120-07-S-D-LL
Amphenol ICC (FCI)
98464-G61-06ULF
Samtec Inc.

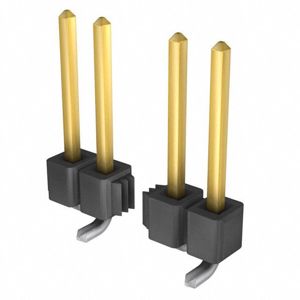

TSM-107-02-L-SV
