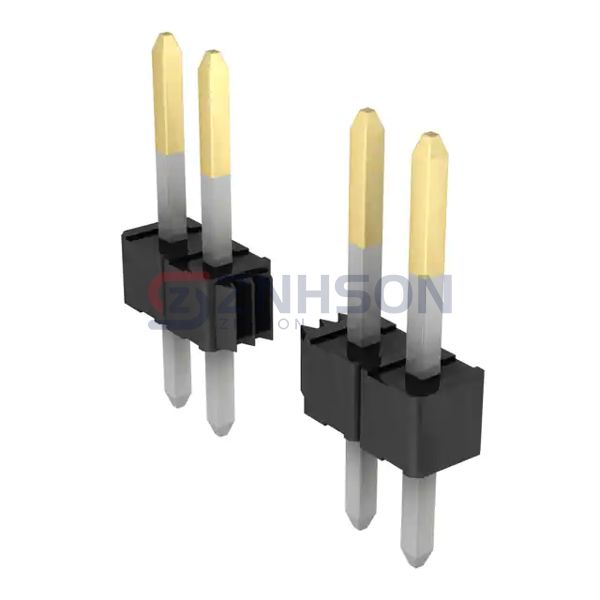

0022284168
Molex
Molex
CONN HEADER VERT 16POS 2.54MM
$1.00
Available to order
Reference Price (USD)
1+
$1.00171
500+
$0.9916929
1000+
$0.9816758
1500+
$0.9716587
2000+
$0.9616416
2500+
$0.9516245
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 0022284168 Molex Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.505" (12.83mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
0877591064
TE Connectivity AMP Connectors
4-103322-0-32
Preci-Dip
852-10-090-10-001101
Amphenol ICC (Commercial Products)
G861AB04221T2EU
Samtec Inc.
ZSS-125-06-S-D-1040
Preci-Dip
802-10-012-30-001191
Samtec Inc.
TSW-106-09-L-S
Amphenol Sine Systems Corp
ATM13-12PC-BM03
Samtec Inc.

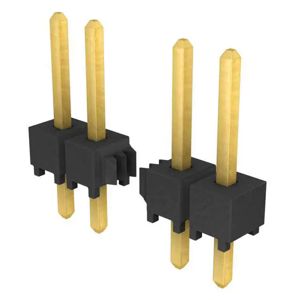

TSW-115-23-G-S
