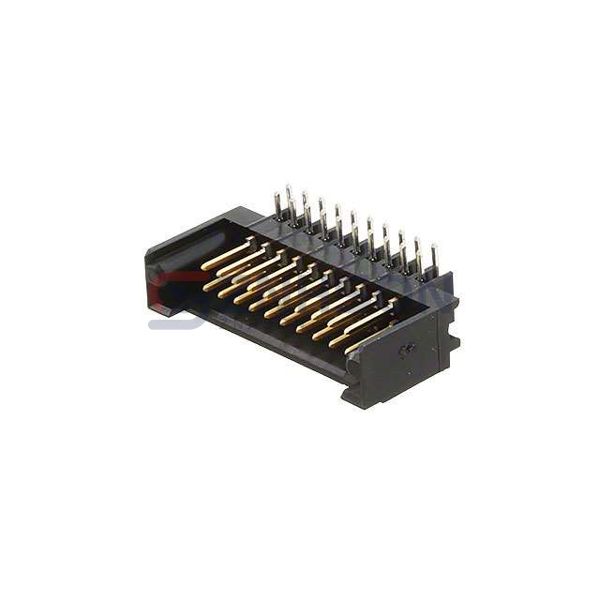

1-102589-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 20POS 2.54MM
$7.07
Available to order
Reference Price (USD)
336+
$5.40601
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 1-102589-2 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.319" (8.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
Related Products
Samtec Inc.
TSW-135-08-L-D-RA
Preci-Dip
450-80-266-00-013101
Samtec Inc.
TSM-105-01-SM-DV
TE Connectivity AMP Connectors
280609-2
Preci-Dip
850-10-006-40-001101
Samtec Inc.
TSW-115-08-L-S
TE Connectivity AMP Connectors
1-103635-5
Preci-Dip
399-V3-145-10-009101

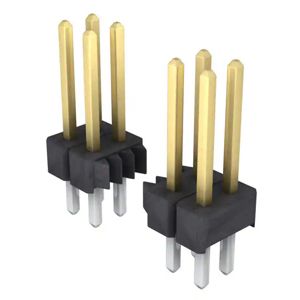

Preci-Dip
