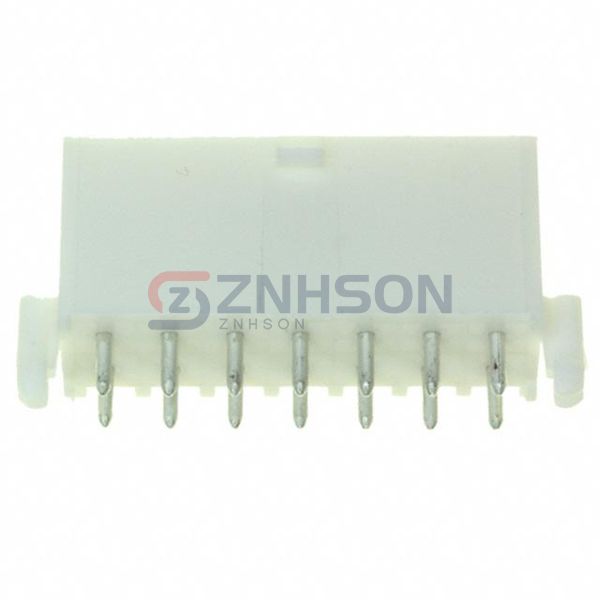

1-794074-0

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.163" (4.14mm)
• Number of Positions: 14
• Number of Rows: 2
• Row Spacing - Mating: 0.163" (4.14mm)
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Locking Ramp
• Contact Length - Mating: -
• Contact Length - Post: 0.175" (4.45mm)
• Overall Contact Length: -
• Insulation Height: 0.531" (13.50mm)
• Contact Shape: Circular
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 150.0µin (3.81µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Features: Board Lock
• Operating Temperature: -20°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: White
• Current Rating (Amps): Varies by Wire Gauge
• Voltage Rating: 600VAC
