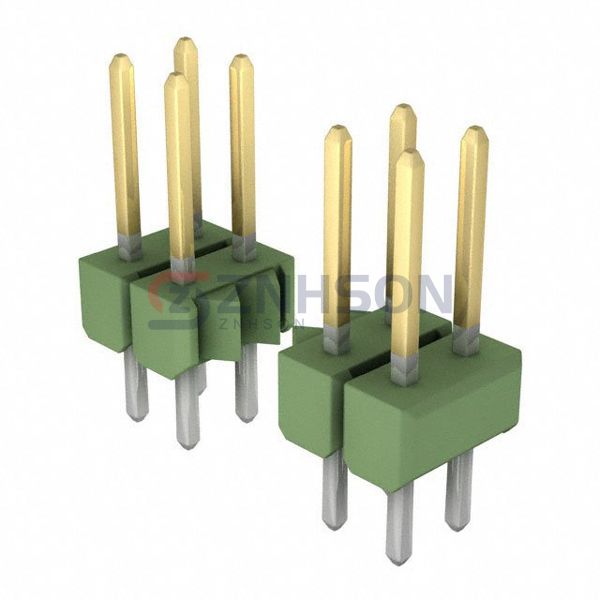

1-829394-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 20POS 2.54MM
$1.79
Available to order
Reference Price (USD)
3,600+
$1.69287
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-829394-0 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the TE Connectivity AMP Connectors difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.268" (6.80mm)
- Contact Length - Post: 0.132" (3.35mm)
- Overall Contact Length: 0.500" (12.70mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.90µin (0.099µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Green
- Current Rating (Amps): 5A
- Voltage Rating: -
Related Products
HARTING
09185165912
HARTING
02539031301
Harwin Inc.
M22-5300205
Amphenol ICC (FCI)
76384-406LF
Molex
0026481155
Samtec Inc.
TMM-104-04-S-S-SM
Samtec Inc.
TSM-115-04-L-SH-A-K
Amphenol ICC (FCI)
68002-400HLF
Samtec Inc.

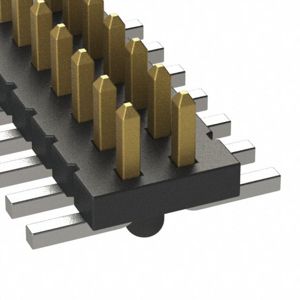

FTS-111-03-F-DV-A-P-TR
