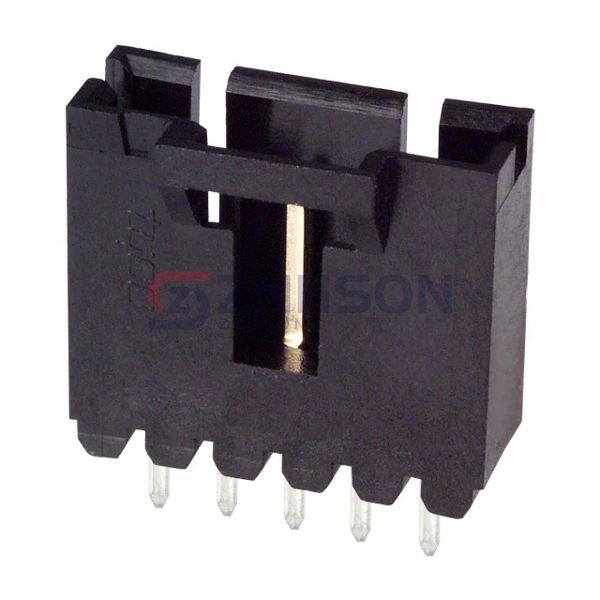

103735-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 5POS 2.54MM
$1.85
Available to order
Reference Price (USD)
1+
$1.54000
36+
$1.32250
108+
$1.21648
504+
$1.03143
1,008+
$0.89918
5,004+
$0.80926
10,008+
$0.79340
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 103735-4 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the TE Connectivity AMP Connectors difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.545" (13.84mm)
- Insulation Height: 0.535" (13.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
55487-1119
Hirose Electric Co Ltd
DF3E-3P-2V(54)
Samtec Inc.
TSM-150-02-L-DH
Harwin Inc.
G125-MS12605L0P
Samtec Inc.
TMM-124-01-S-Q-RA
Samtec Inc.
TMM-107-01-L-D-SM-A-P-TR
Preci-Dip
350-80-155-00-024101
Mill-Max Manufacturing Corp.
399-10-151-10-009000
Samtec Inc.

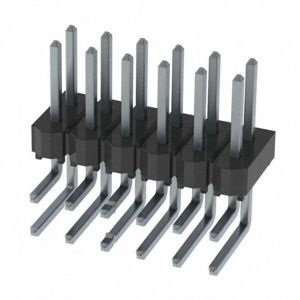

HTSW-106-08-T-D-LA
