107G
Hammond Manufacturing
Hammond Manufacturing

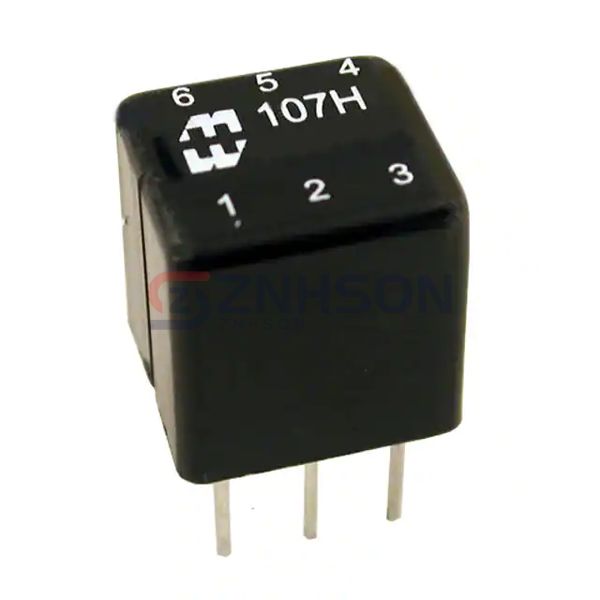

TRANSFORMER AUDIO 600CT/250CT
$23.80
Available to order
Reference Price (USD)
1+
$19.79000
10+
$17.46000
25+
$16.87800
50+
$15.13200
100+
$14.55000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Hammond Manufacturing 107G Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1.52:1
- Impedance - Primary (Ohms): 600CT
- Impedance - Secondary (Ohms): 250CT
- DC Resistance (DCR) - Primary: 60Ohm
- DC Resistance (DCR) - Secondary: 40Ohm
- Transformer Type: Miniature Epoxy Potted
- Frequency Range: 300Hz ~ 50kHz
- Frequency Response: ±1.5dB
- Voltage - Isolation: 100VRMS
- Insertion Loss: -
- Return Loss: -
- Power Level: 150mW
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.630" L x 0.586" W (16.00mm x 14.88mm)
- Height - Seated (Max): 0.630" (16.00mm)
- Termination Style: PC Pin
