109J
Hammond Manufacturing
Hammond Manufacturing

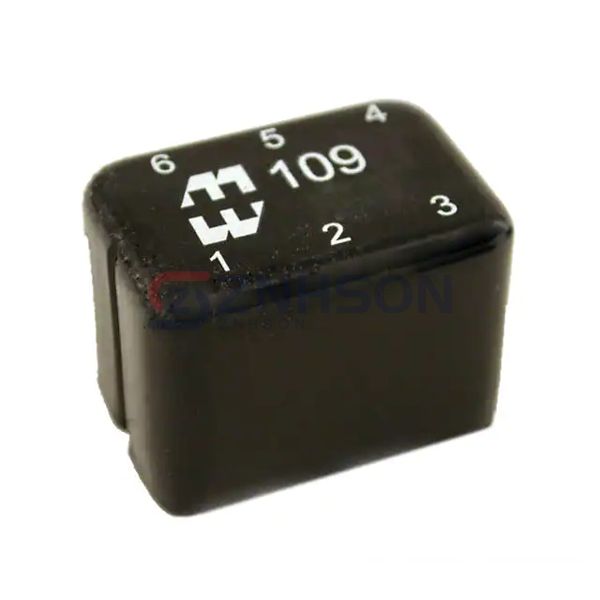

TRANSFORMER AUDIO 1KCT/600CT
$32.88
Available to order
Reference Price (USD)
1+
$27.34000
10+
$24.12000
25+
$23.31600
50+
$20.90400
100+
$20.10000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Hammond Manufacturing 109J Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1.29:1
- Impedance - Primary (Ohms): 1kCT
- Impedance - Secondary (Ohms): 600CT
- DC Resistance (DCR) - Primary: 64Ohm
- DC Resistance (DCR) - Secondary: 51.5Ohm
- Transformer Type: Miniature Epoxy Potted
- Frequency Range: 300Hz ~ 50kHz
- Frequency Response: ±1.5dB
- Voltage - Isolation: 100VRMS
- Insertion Loss: -
- Return Loss: -
- Power Level: 2W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 1.315" L x 0.930" W (33.40mm x 23.62mm)
- Height - Seated (Max): 0.920" (23.37mm)
- Termination Style: PC Pin
