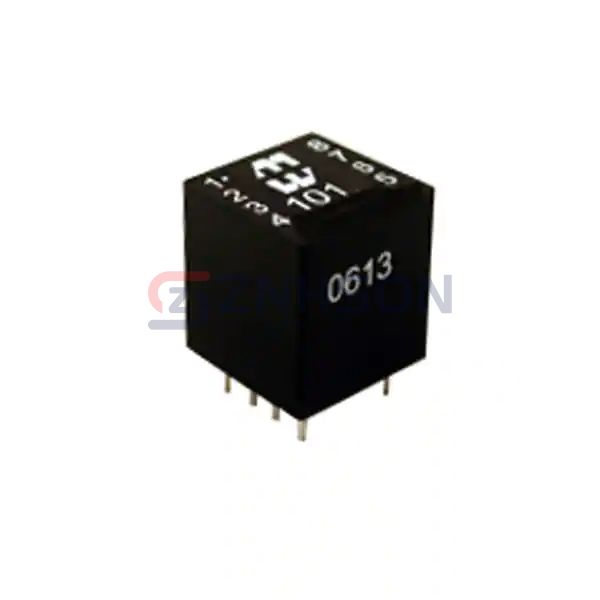

101R
Hammond Manufacturing
Hammond Manufacturing
TRANSFORMER AUDIO 600CT/50CT
$21.22
Available to order
Reference Price (USD)
1+
$17.65000
10+
$15.57000
25+
$15.05120
50+
$13.49400
100+
$12.97500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Hammond Manufacturing 101R Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: -
- Impedance - Primary (Ohms): 600CT
- Impedance - Secondary (Ohms): 50CT
- DC Resistance (DCR) - Primary: 44Ohm
- DC Resistance (DCR) - Secondary: 4.7Ohm
- Transformer Type: Miniature Epoxy Potted
- Frequency Range: 200Hz ~ 100kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: -
- Insertion Loss: -
- Return Loss: -
- Power Level: 100mW
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.450" L x 0.450" W (11.43mm x 11.43mm)
- Height - Seated (Max): 0.480" (12.19mm)
- Termination Style: PC Pin
