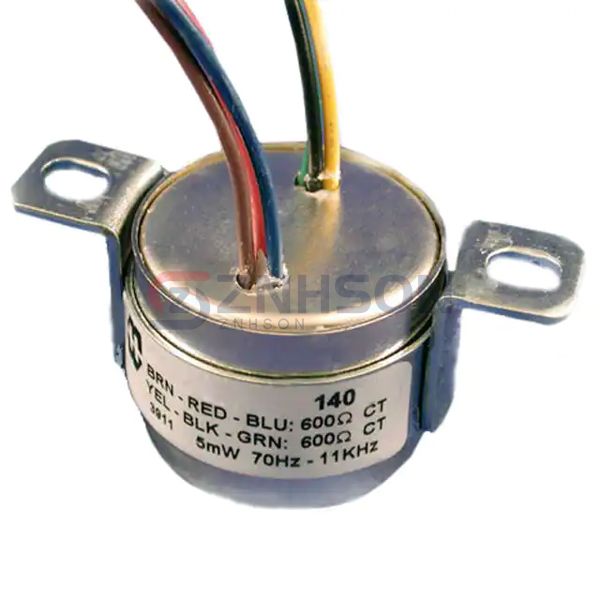

140REX
Hammond Manufacturing
Hammond Manufacturing
TRANSFORMER AUDIO
$87.07
Available to order
Reference Price (USD)
1+
$72.38000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Hammond Manufacturing 140REX Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 2:1
- Impedance - Primary (Ohms): 600CT
- Impedance - Secondary (Ohms): 150
- DC Resistance (DCR) - Primary: 72.4Ohm
- DC Resistance (DCR) - Secondary: 18.2Ohm
- Transformer Type: -
- Frequency Range: 20Hz ~ 20kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 500Vrms
- Insertion Loss: 1dB Typ
- Return Loss: 22.5dB Typ
- Power Level: 10dB
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 1.250" Dia (31.75mm)
- Height - Seated (Max): 1.000" (25.40mm)
- Termination Style: Screw Terminal
