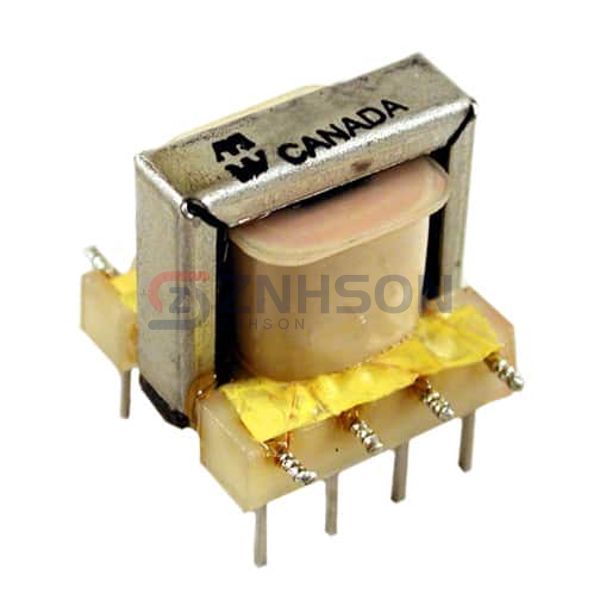

148A
Hammond Manufacturing
Hammond Manufacturing
TRANS AUDIO 150/600-600/2.4K IMP
$24.45
Available to order
Reference Price (USD)
1+
$20.94000
10+
$18.48000
25+
$17.86400
50+
$16.01600
100+
$15.40000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Hammond Manufacturing 148A Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: -
- Impedance - Primary (Ohms): 600, 150/150
- Impedance - Secondary (Ohms): 2.4k, 600/600
- DC Resistance (DCR) - Primary: 45Ohm
- DC Resistance (DCR) - Secondary: 300Ohm
- Transformer Type: Economical Open Type
- Frequency Range: 200Hz ~ 15kHz
- Frequency Response: ±1dB
- Voltage - Isolation: -
- Insertion Loss: 0.5dB
- Return Loss: -
- Power Level: 300mW
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.820" L x 0.680" W (20.83mm x 17.27mm)
- Height - Seated (Max): 0.690" (17.53mm)
- Termination Style: PC Pin
