1615A
Hammond Manufacturing
Hammond Manufacturing

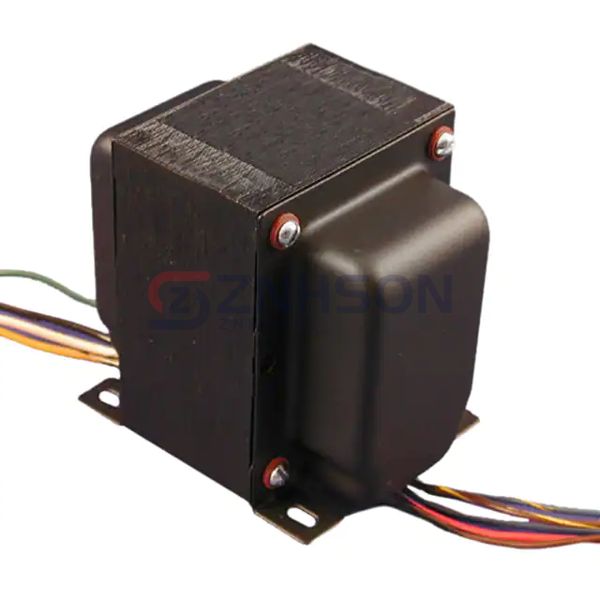

AUDIOPHILE TUBE OUTPUT TRANSFRMR
$127.18
Available to order
Reference Price (USD)
1+
$104.55000
10+
$101.06500
25+
$94.09520
50+
$87.12500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your audio setups with Hammond Manufacturing 1615A Audio Transformers, crafted for precision and high fidelity. Suitable for both professional and hobbyist applications, these transformers deliver excellent frequency response and isolation. Depend on Hammond Manufacturing for quality that exceeds expectations. Submit your inquiry now and take the first step toward superior audio performance.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: -
- Impedance - Primary (Ohms): 5kCT
- Impedance - Secondary (Ohms): 4, 8, 16
- DC Resistance (DCR) - Primary: 84.46Ohm, 96.25Ohm
- DC Resistance (DCR) - Secondary: 130mOhm, 210mOhm, 270mOhm
- Transformer Type: Push-Pull Audiophile, Ultra-Linear - Tube Output
- Frequency Range: 30Hz ~ 30kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 2000V @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 15W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 3.250" L x 2.500" W (82.55mm x 63.50mm)
- Height - Seated (Max): 3.060" (77.72mm)
- Termination Style: Wire Leads
