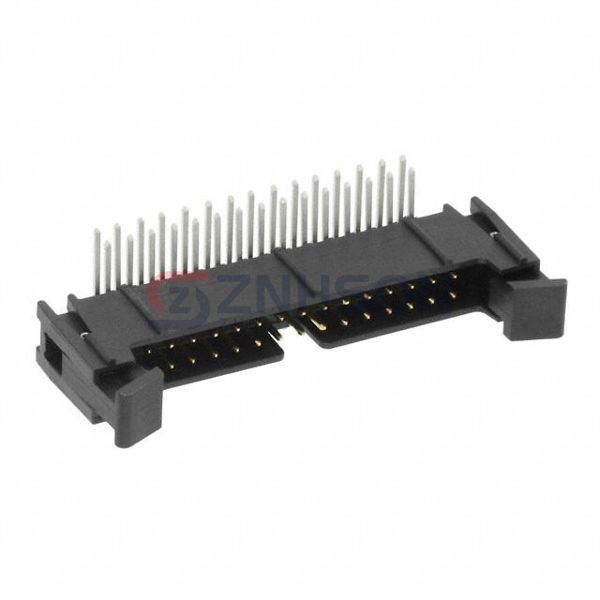

155230-5203-RB
3M
3M
CONN HEADER R/A 30POS 2MM
$7.21
Available to order
Reference Price (USD)
980+
$6.02040
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 155230-5203-RB 3M Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.155" (3.94mm)
- Overall Contact Length: -
- Insulation Height: 0.247" (6.28mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.25A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
3-794628-6
Samtec Inc.
TSM-107-01-T-SH-P-TR
TE Connectivity AMP Connectors
5-104074-3
Samtec Inc.
TSM-105-02-S-SV-P
Hirose Electric Co Ltd
HIF3BB-50P-2.54W(88)
Harwin Inc.
M80-5011205
Sullins Connector Solutions
PRPC008DABN-RC
TE Connectivity AMP Connectors
1-350944-0
Samtec Inc.

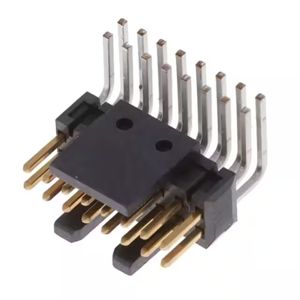

FTSH-108-01-F-D-RA-K
