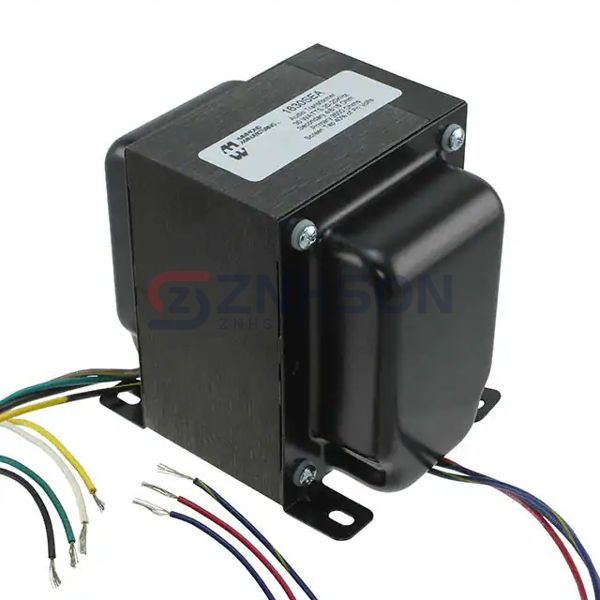

1630SEA
Hammond Manufacturing
Hammond Manufacturing
AUDIOPHILE TUBE OUTPUT TRANSFRMR
$180.79
Available to order
Reference Price (USD)
1+
$148.61000
10+
$137.99500
25+
$132.68760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Hammond Manufacturing 1630SEA Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: -
- Impedance - Primary (Ohms): 3.5k
- Impedance - Secondary (Ohms): 4, 8, 16
- DC Resistance (DCR) - Primary: 110.1Ohm
- DC Resistance (DCR) - Secondary: 634mOhm
- Transformer Type: Single Ended Audiophile, Ultra-Linear - Tube Output
- Frequency Range: 20Hz ~ 20kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 2828VDC @ 1 Second
- Insertion Loss: ±1dB
- Return Loss: -
- Power Level: 30W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 4.980" L x 3.750" W (126.49mm x 95.25mm)
- Height - Seated (Max): 4.650" (118.11mm)
- Termination Style: Wire Leads
