1640SEA
Hammond Manufacturing
Hammond Manufacturing

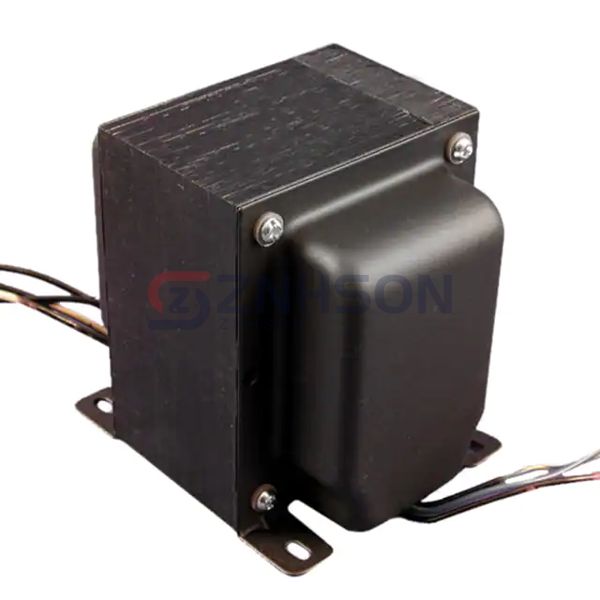

AUDIOPHILE TUBE OUTPUT TRANSFRMR
$180.79
Available to order
Reference Price (USD)
1+
$148.61000
10+
$137.99500
25+
$132.68760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Hammond Manufacturing 1640SEA Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: -
- Impedance - Primary (Ohms): 1.2k
- Impedance - Secondary (Ohms): 4, 8, 16
- DC Resistance (DCR) - Primary: -
- DC Resistance (DCR) - Secondary: -
- Transformer Type: Single Ended Audiophile, Ultra-Linear - Tube Output
- Frequency Range: 20Hz ~ 20kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 2000Vrms
- Insertion Loss: ±1dB
- Return Loss: -
- Power Level: 30W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 4.950" L x 3.750" W (125.73mm x 95.20mm)
- Height - Seated (Max): 4.560" (115.82mm)
- Termination Style: Wire Leads
